Tytan Steel LED Rapid

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

Technical specifications

Light source	LED
Colour temperature	4000K
Diffuser type	lens matrix
Mounting version	surface suspended
Dimensions [mm]	600/57/45; 1188/57/45
Application	industrial

LED220-240vIik06ip66CEQuick installationHigh efficiency

Ask about this product

Options

Downloads

Specification

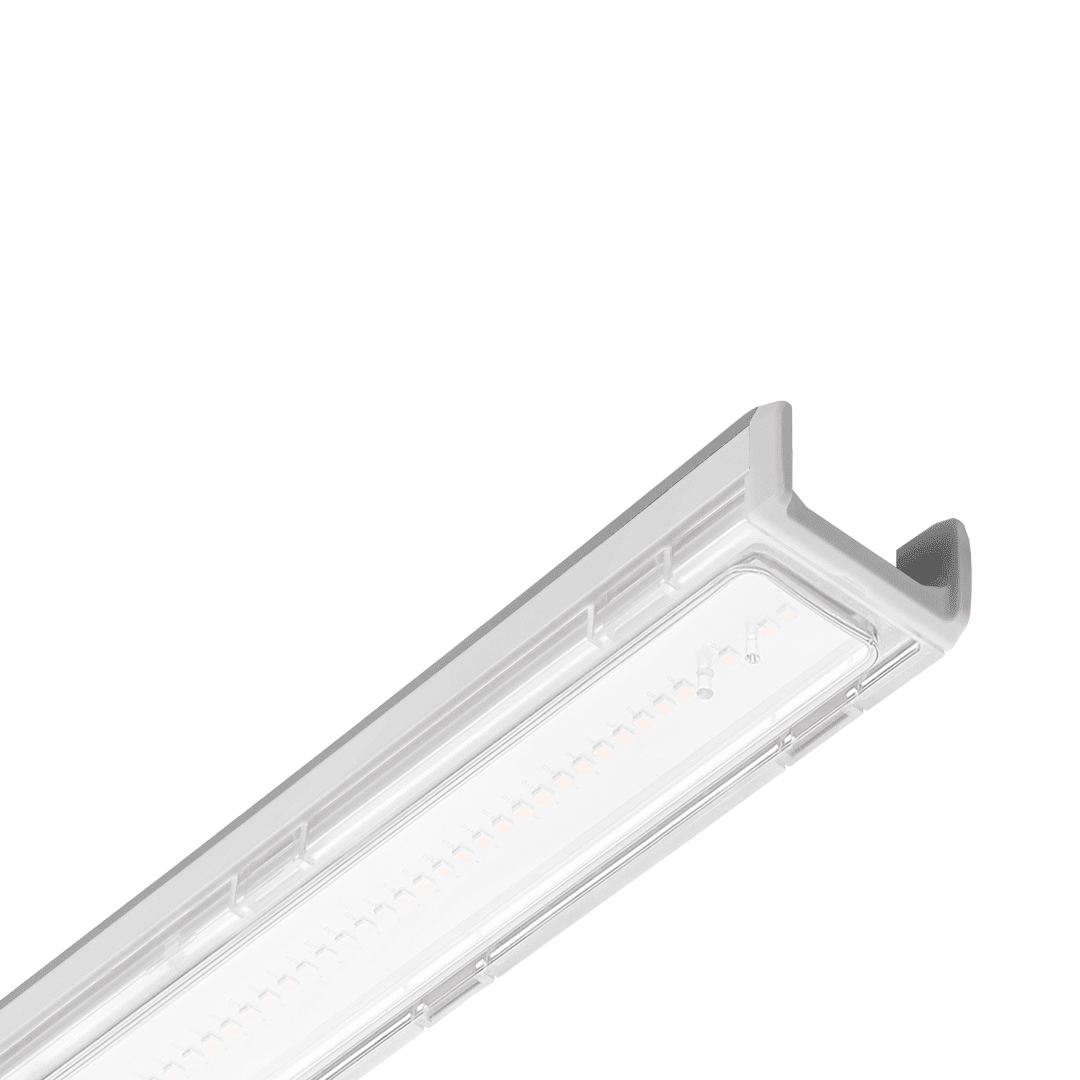

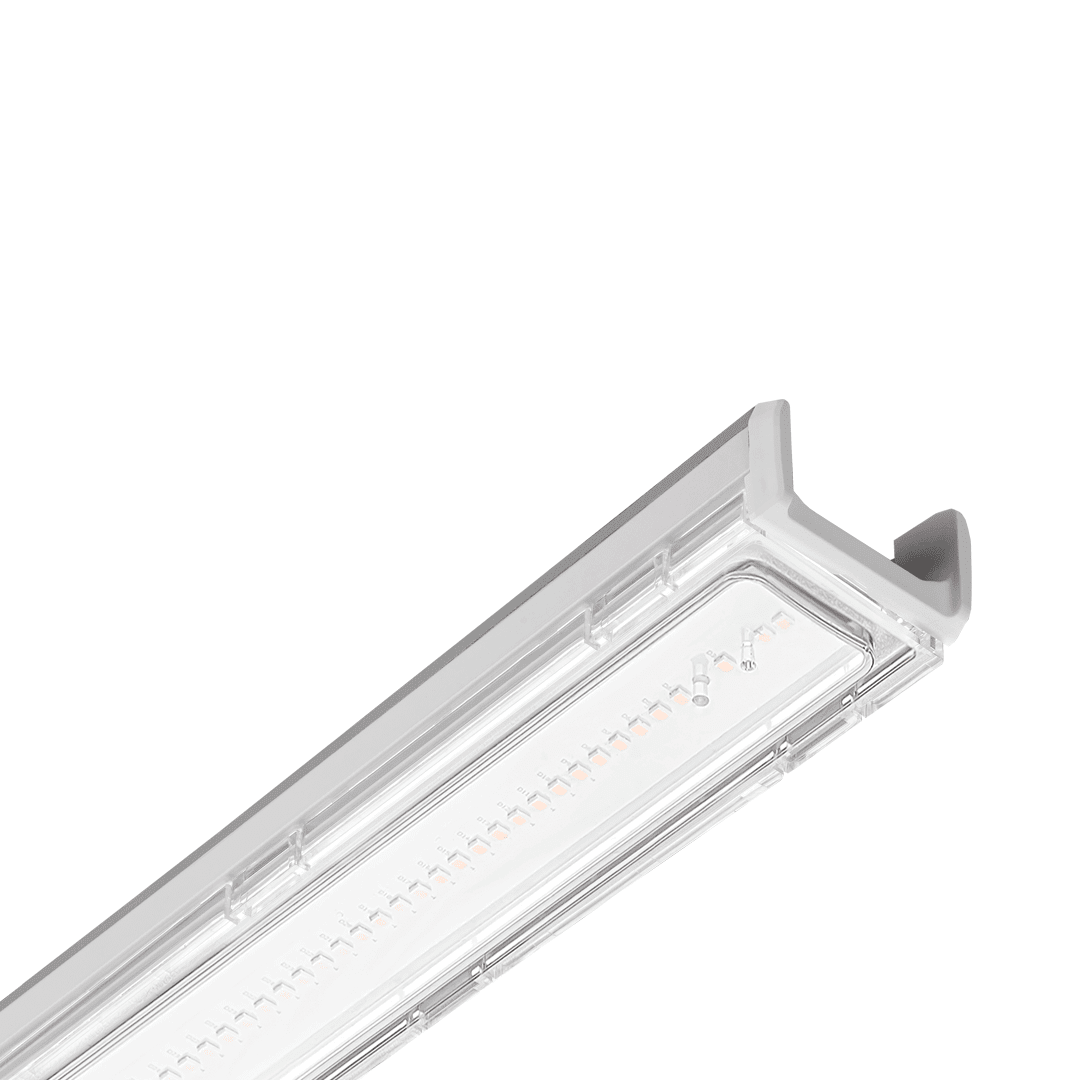

Tytan Steel LED Rapid reflects an innovative approach to classic hermetic luminaires, combining functionality with aesthetics. All the technical advantages of traditional hermetic luminaires have been enclosed in an elegant, low profile, giving the lamp a modern design. Thanks to its advanced optics, Tytan Steel LED Rapid is suitable for both the simplest applications and demanding industrial solutions. The product is exceptionally easy to install and has low purchase and operating costs (169 lm/W).

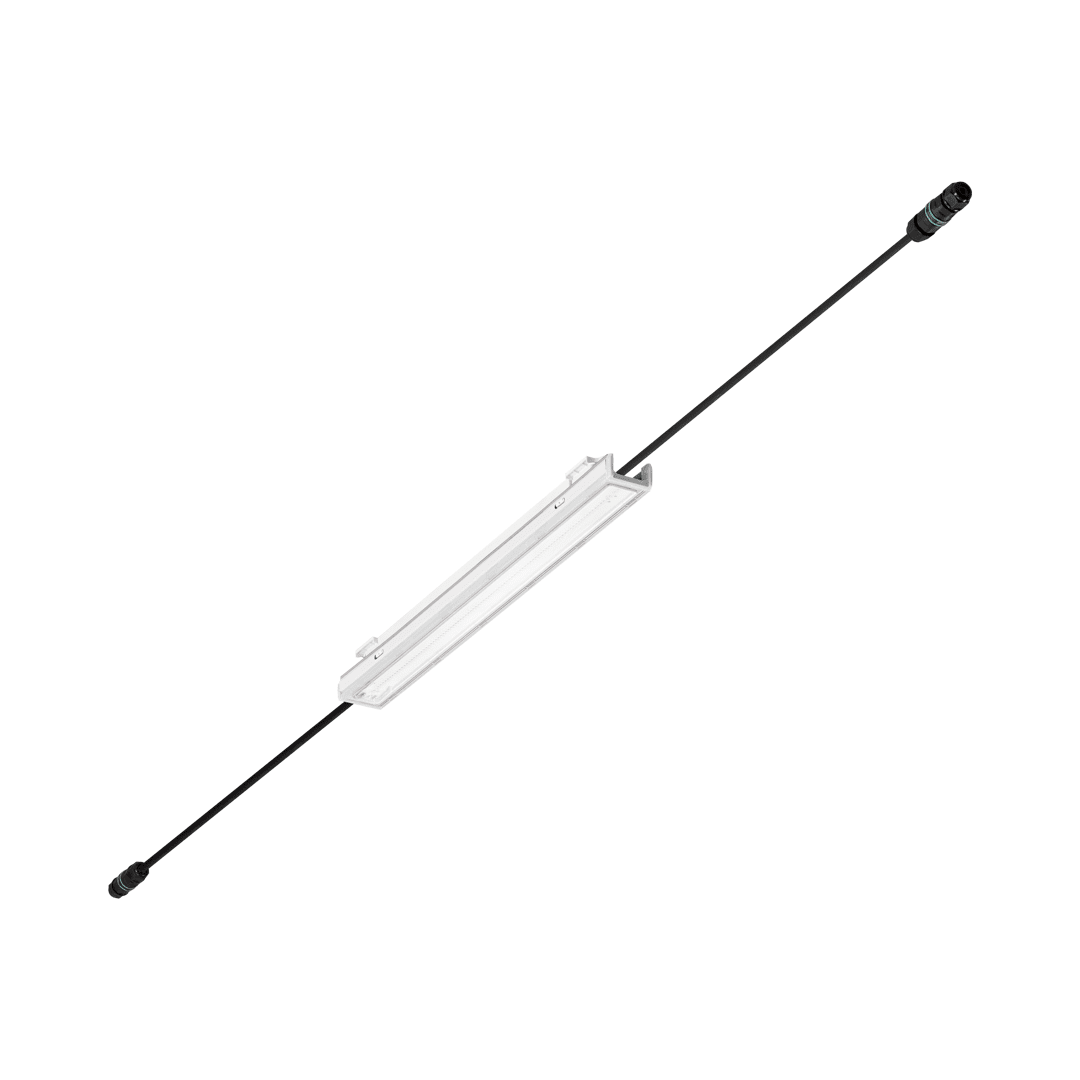

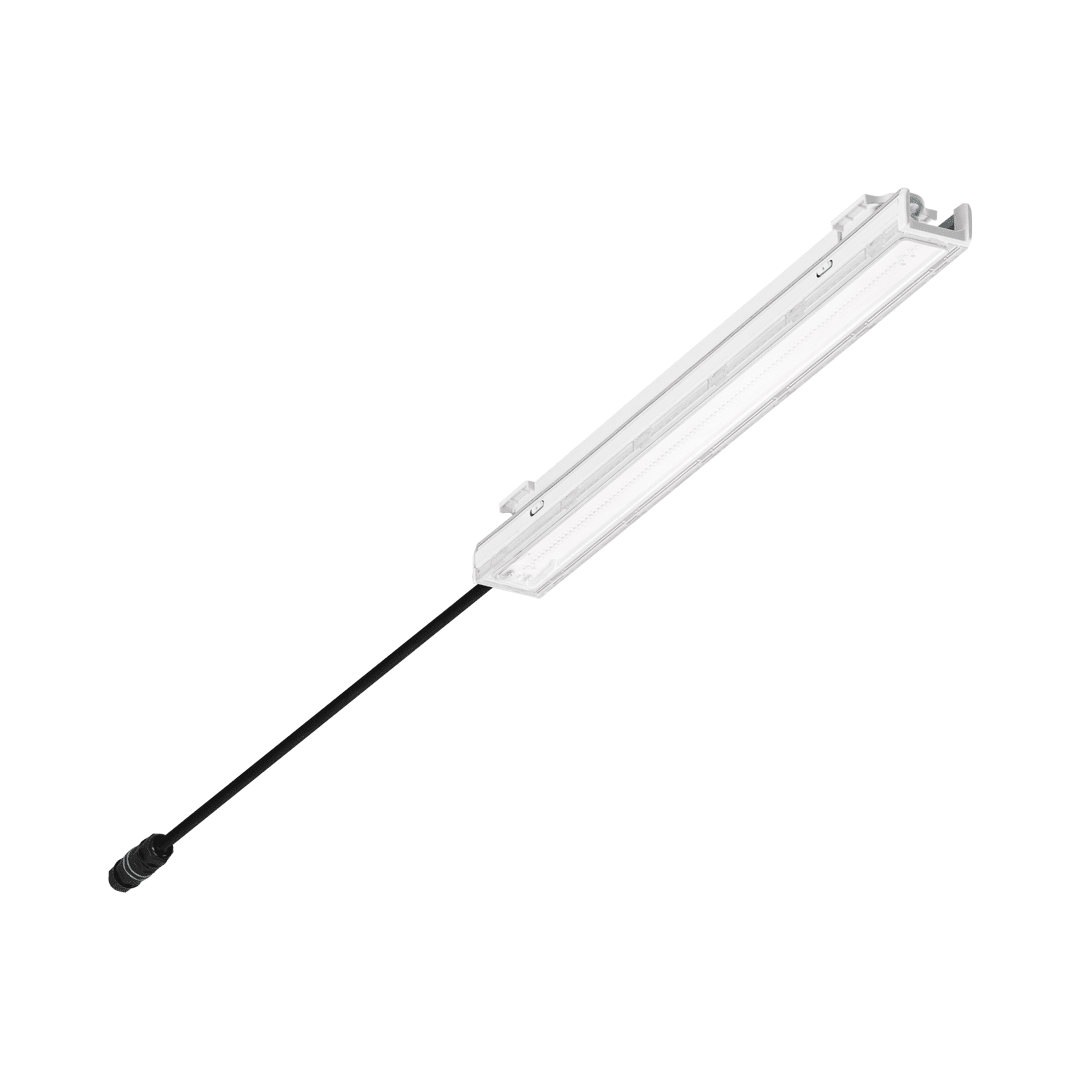

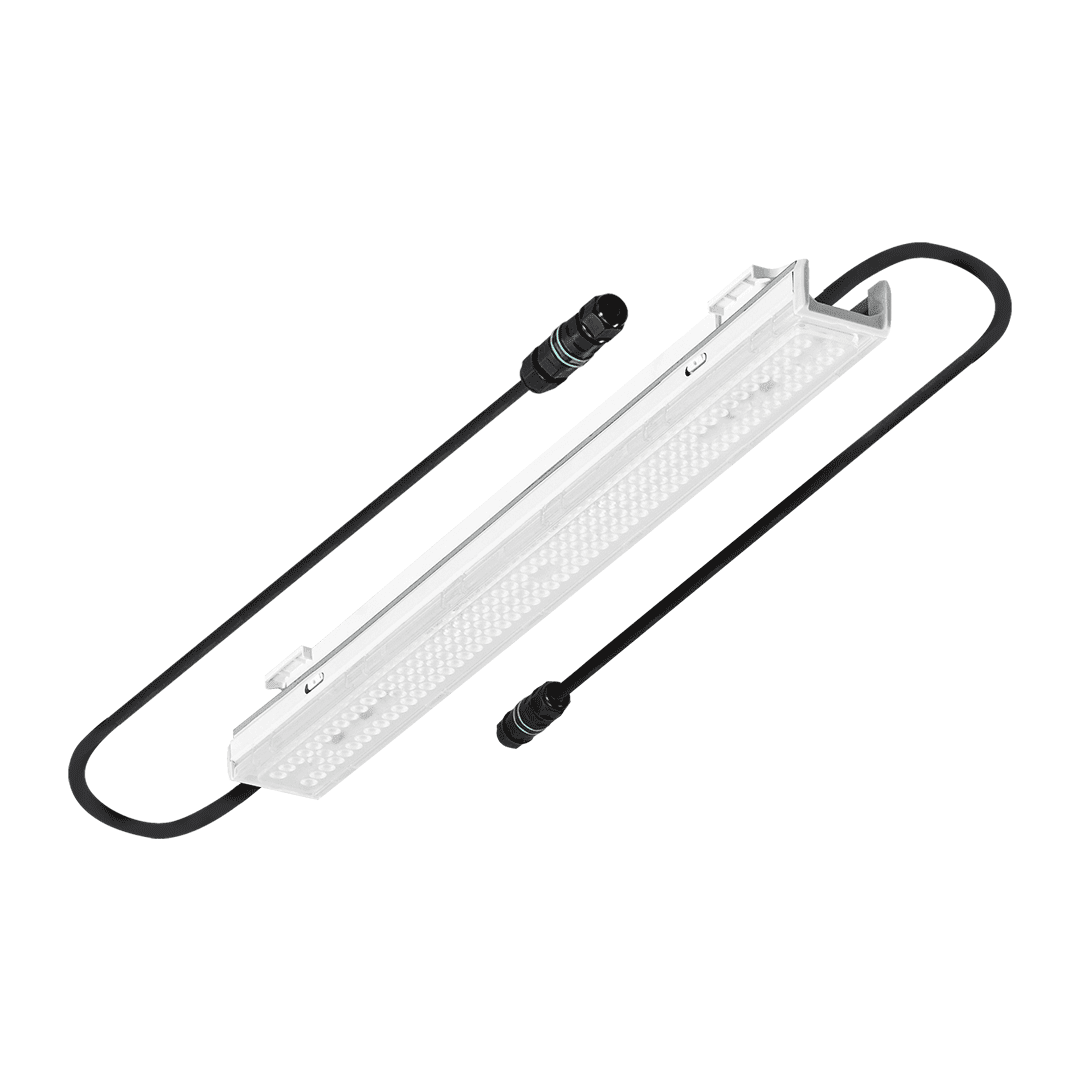

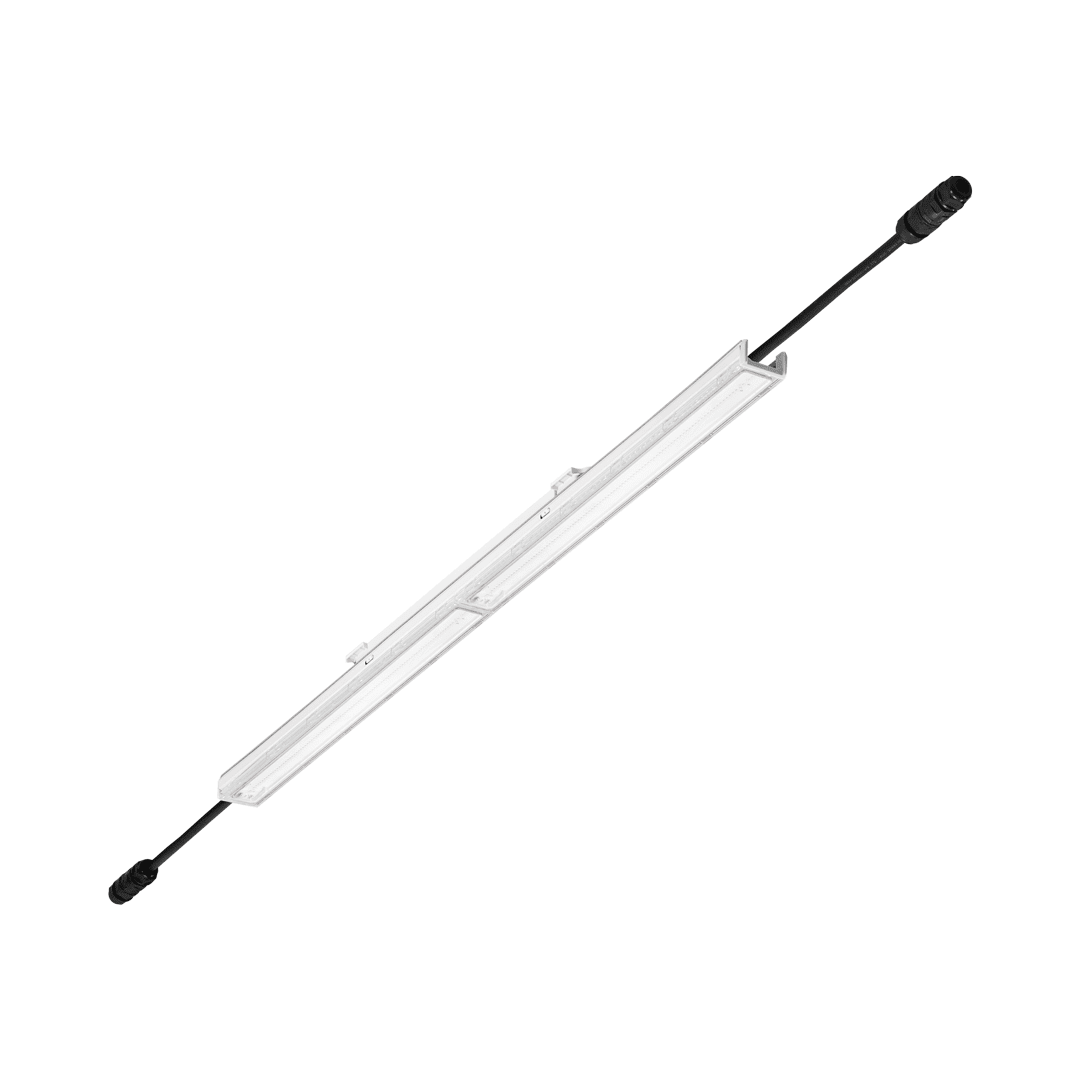

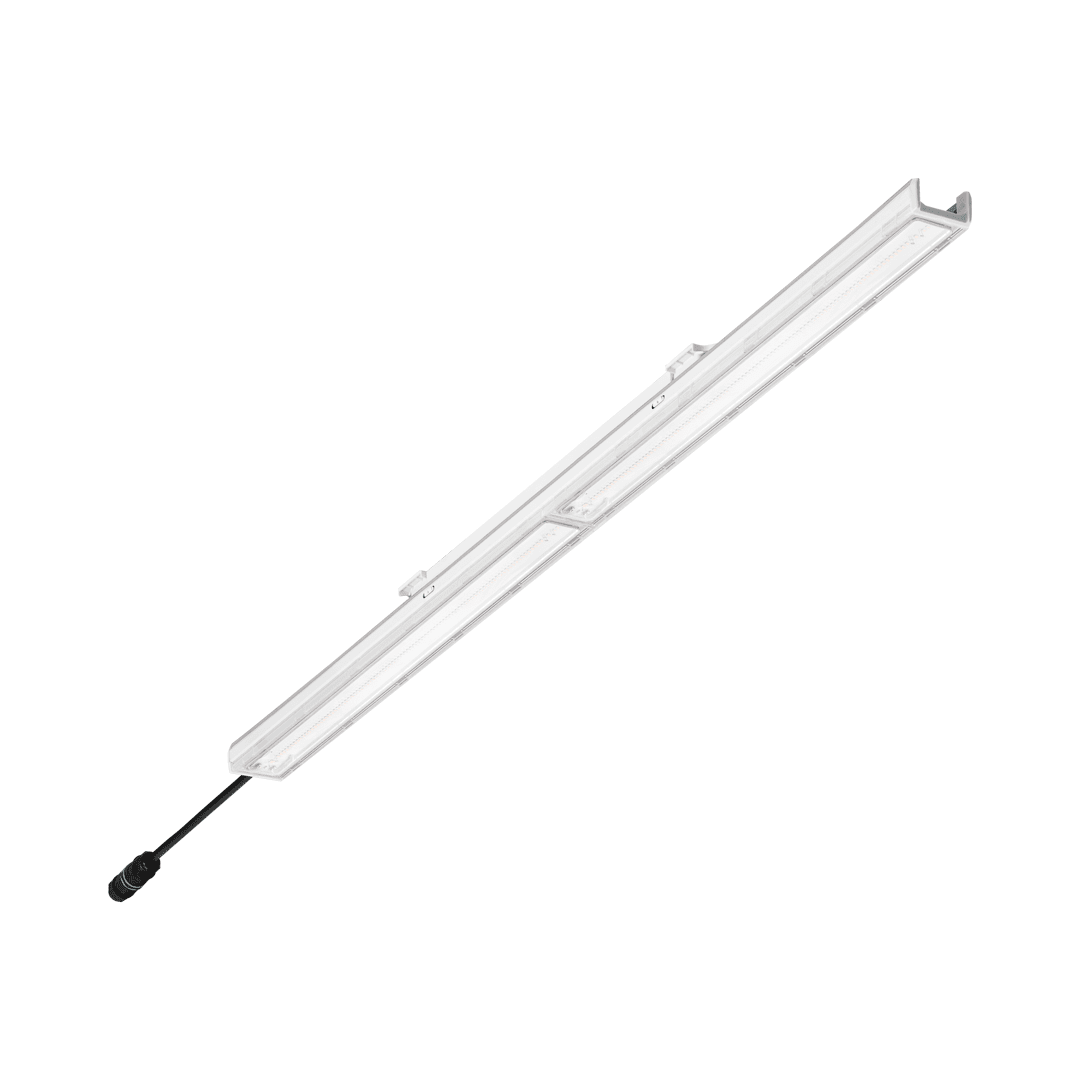

The RAPID designation indicates even faster installation (compared to classic, openable hermetic luminaires) thanks to a 0.6 m long cable leading directly from the luminaire and terminated with a sealed quick connector. This allows the power supply to be connected without opening the lamp. At the same time, the luminaire can still be opened for servicing. Through-wired versions have two cables of the same design. The reliable components used in the lamp minimise the need for servicing. The Tytan Steel LED Rapid lamp is made of steel, which ensures its exceptional durability, and thanks to its U-shaped profile design, it retains the lightness characteristic of plastic luminaires, which facilitates installation and does not burden the supporting structures.

Tytan Steel LED Rapid is an optimal combination of functionality and economy, ideal for a wide range of applications.

Application

The multi-purpose LED lamp is designed for use in areas with high dust and water resistance requirements. It is particularly recommended for lighting industrial and warehouse halls, garages, car parks (underground and multi-storey), public facilities, including hospitals, educational and childcare facilities, commercial and service facilities, transport terminals and underground passages. The lamp is ideal for new lighting applications as well as for replacing traditional fluorescent luminaires with energy-efficient LED solutions. Its design is suitable for surface-mounted and suspended installation.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Beam angle [°]	Luminous efficacy [lm/W]	DIMM DALI	Through wiring	Dimensions (H/W/T/S) [mm]	Index
1188/57/45
27	4150	105	154	-	-	1188/57/45	189227
27	4150	105	154	-	LS2	1188/57/45	192777
27	4550	120	169	-	-	1188/57/45	189203
27	4550	120	169	-	LS2	1188/57/45	192753
40	5950	105	149	-	-	1188/57/45	189234
40	5950	105	149	yes	-	1188/57/45	189333
40	5950	105	149	-	LS2	1188/57/45	192784
40	5950	105	149	yes	LS2	1188/57/45	192883
40	6500	120	163	-	-	1188/57/45	189210
40	6500	120	163	yes	-	1188/57/45	189326
40	6500	120	163	-	LS2	1188/57/45	192760
40	6500	120	163	yes	LS2	1188/57/45	192876
50	7550	105	151	-	-	1188/57/45	189258
50	7550	105	151	-	LS2	1188/57/45	192807
50	8300	120	166	-	-	1188/57/45	189241
50	8300	120	166	-	LS2	1188/57/45	192791
73	10900	105	149	-	-	1188/57/45	189272
73	10900	105	149	yes	-	1188/57/45	189357
73	10900	105	149	-	LS2	1188/57/45	192821
73	10900	105	149	yes	LS2	1188/57/45	192906
73	12000	120	164	-	-	1188/57/45	189265
73	12000	120	164	yes	-	1188/57/45	189340
73	12000	120	164	-	LS2	1188/57/45	192814
73	12000	120	164	yes	LS2	1188/57/45	192890
600/57/45
14	2150	105	154	-	-	600/57/45	189159
14	2150	105	154	-	LS2	600/57/45	192708
14	2300	120	164	-	-	600/57/45	189135
14	2300	120	164	-	LS2	600/57/45	192685
20	2950	105	148	-	-	600/57/45	189142
20	2950	105	148	yes	-	600/57/45	189296
20	2950	105	148	-	LS2	600/57/45	192692
20	2950	105	148	yes	LS2	600/57/45	192845
20	3250	120	163	-	-	600/57/45	189128
20	3250	120	163	yes	-	600/57/45	189289
20	3250	120	163	-	LS2	600/57/45	192678
20	3250	120	163	yes	LS2	600/57/45	192838
30	4400	105	147	-	-	600/57/45	189197
30	4400	105	147	-	LS2	600/57/45	192746
30	4800	120	160	-	-	600/57/45	189173
30	4800	120	160	-	LS2	600/57/45	192722
34	4900	105	144	-	-	600/57/45	189180
34	4900	105	144	yes	-	600/57/45	189319
34	4900	105	144	-	LS2	600/57/45	192739
34	4900	105	144	yes	LS2	600/57/45	192869
34	5500	120	162	-	-	600/57/45	189166
34	5500	120	162	yes	-	600/57/45	189302
34	5500	120	162	-	LS2	600/57/45	192715
34	5500	120	162	yes	LS2	600/57/45	192852

Show more Show less

Accessories

Hide accessories

Index	Accessory name
598906	Tytan Steel protection grid 1188mm RAL9003
598913	Protection grid Sensor Hytronik HIM84 RAL 9003

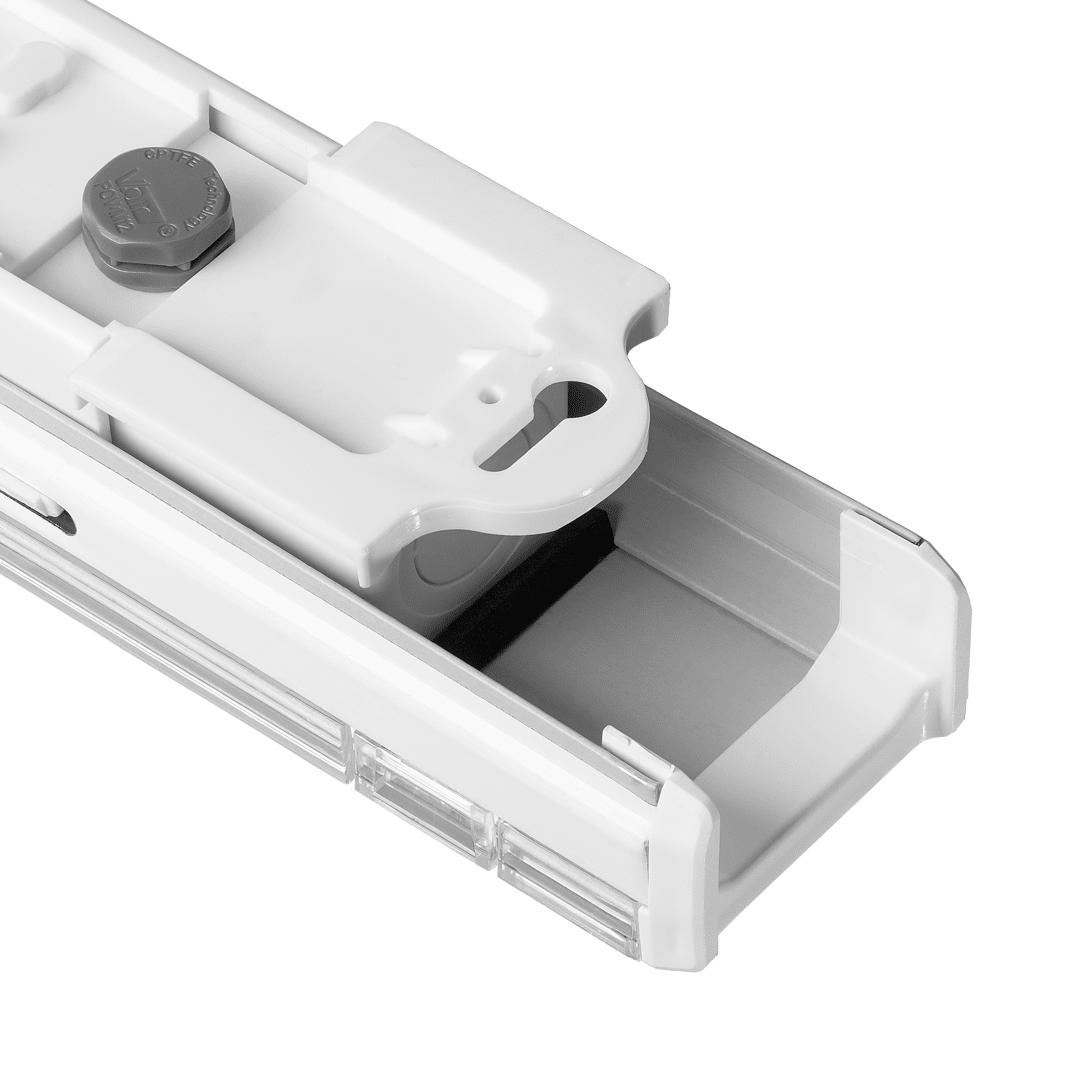

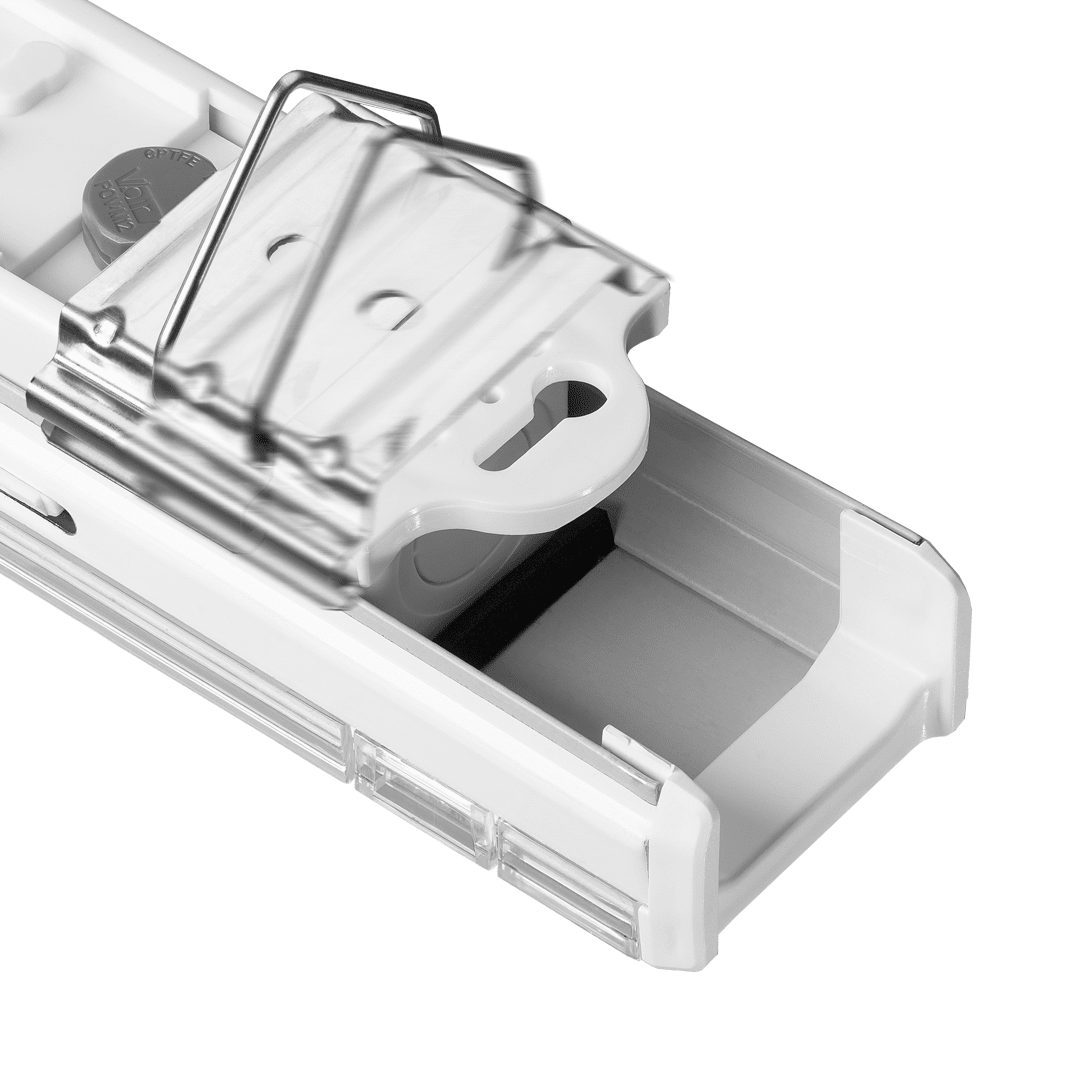

598432	Tytan Steel - suspension bracket (set)

Tytan Steel protection grid 1188mm RAL9003 (598906)

Protection grid Sensor Hytronik HIM84 RAL 9003 (598913)
