Quest 2 LED IoT

High-quality floodlight with inbuilt LED source.

Technical specifications

Light source	LED
Colour temperature	3000K 5000K
Diffuser type	transparent
Mounting version	surface
Application	commercial educational industrial sports architectural

LEDIik09ip65ip66iotpzhCE

Ask about this product

Options

Downloads

Specification

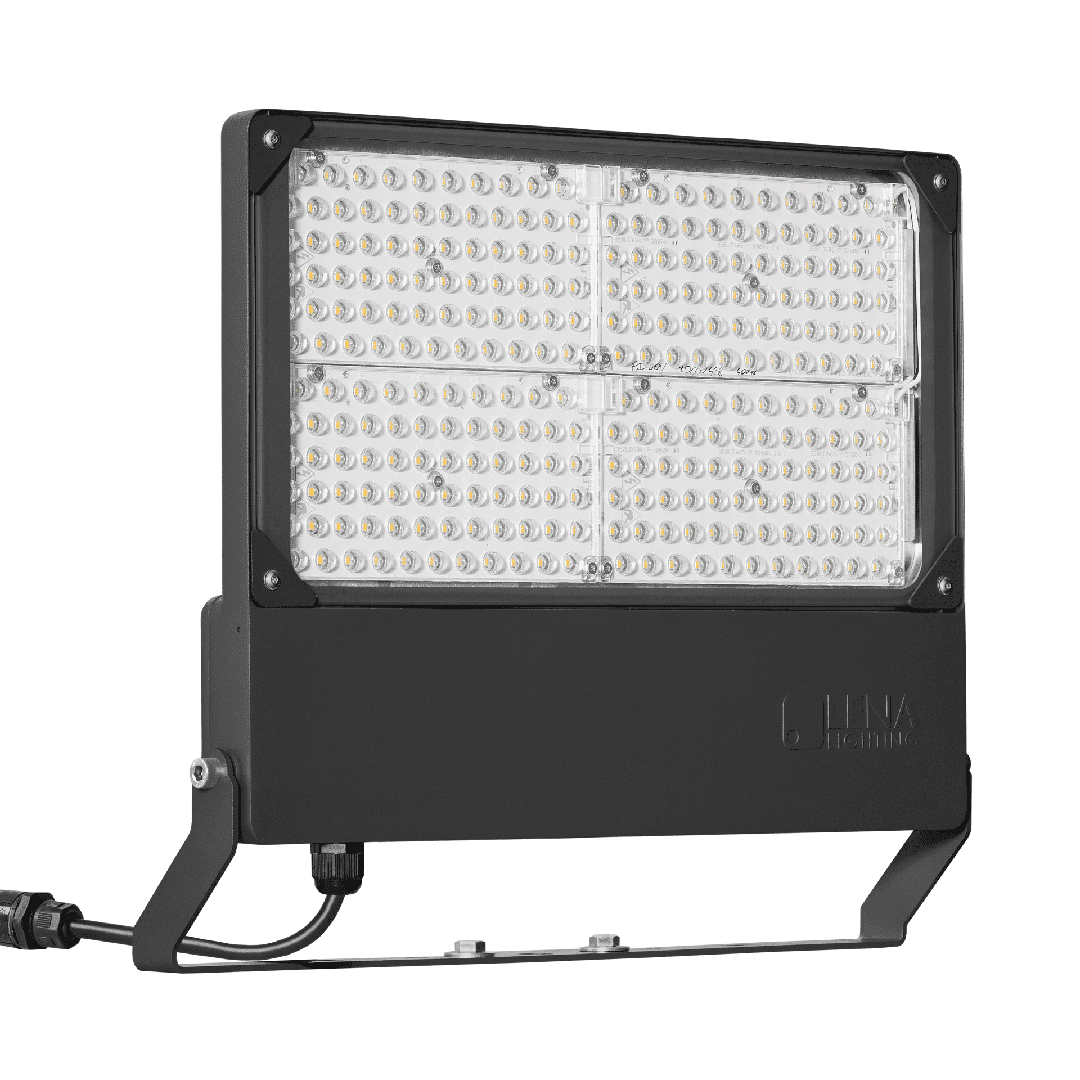

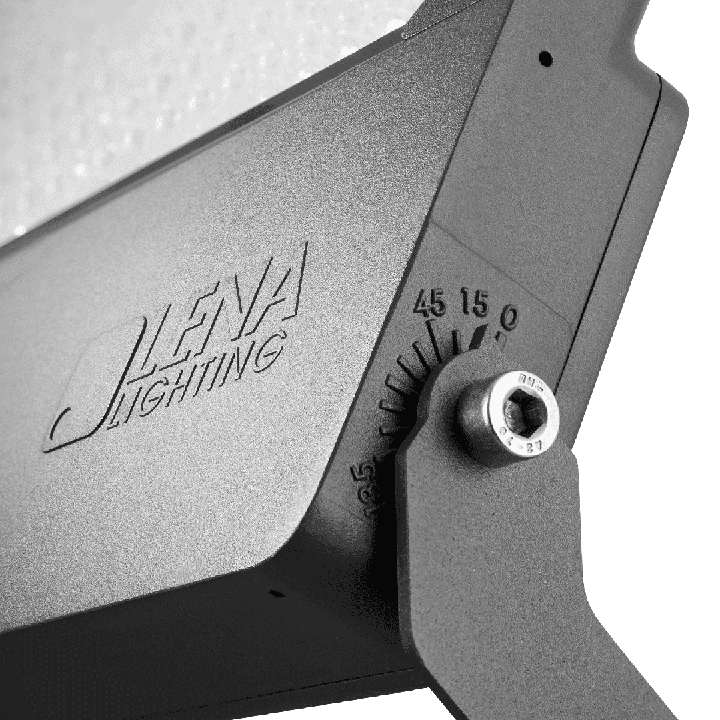

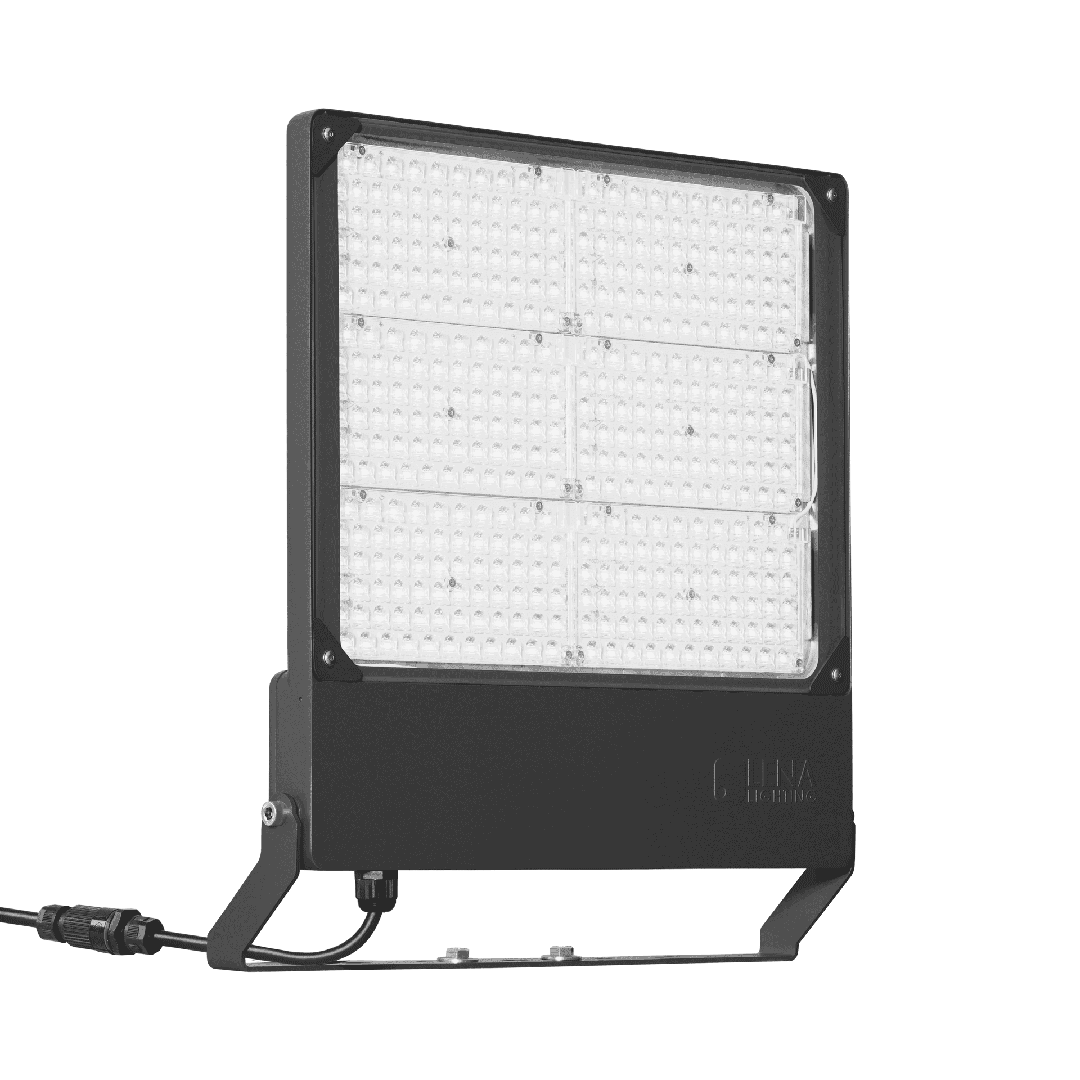

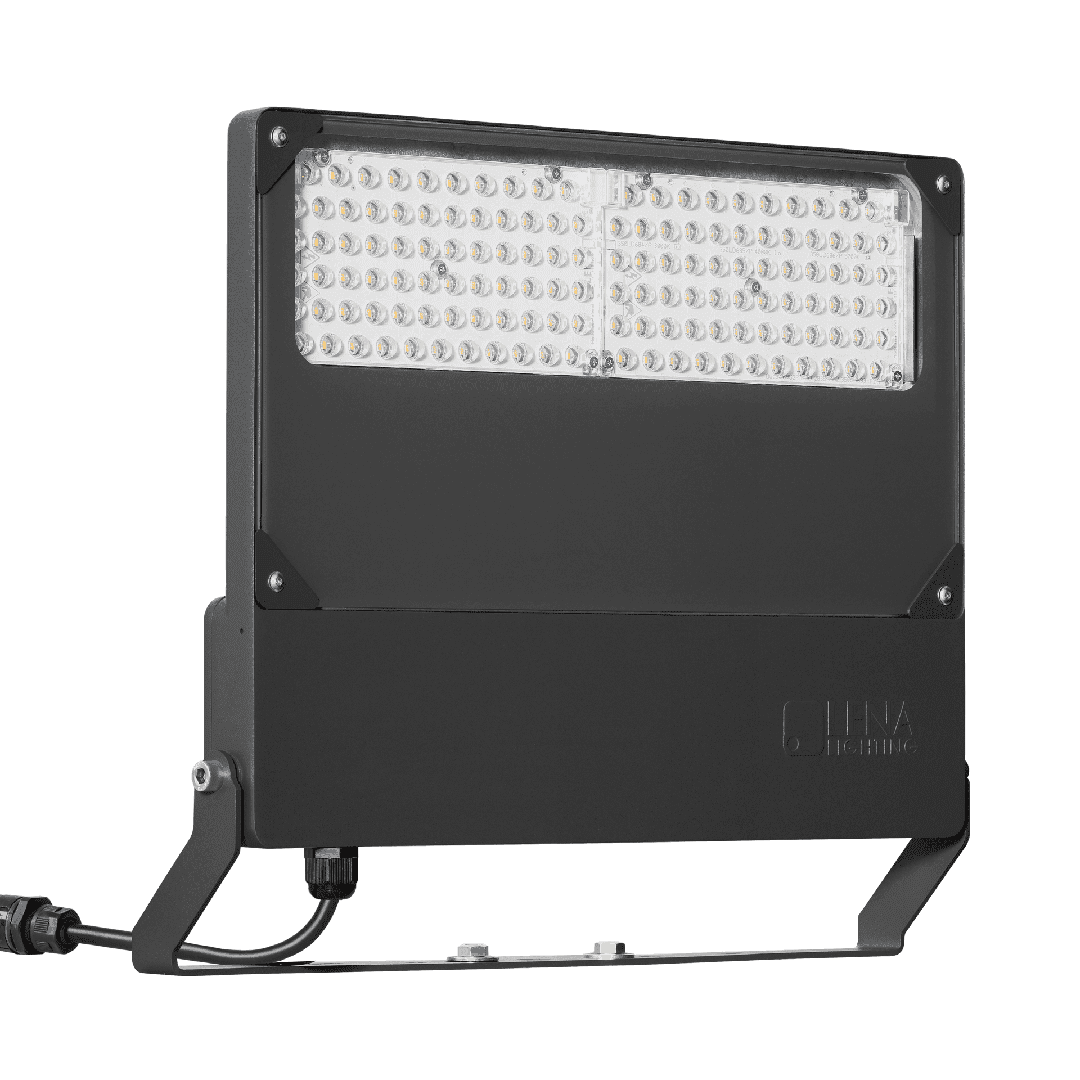

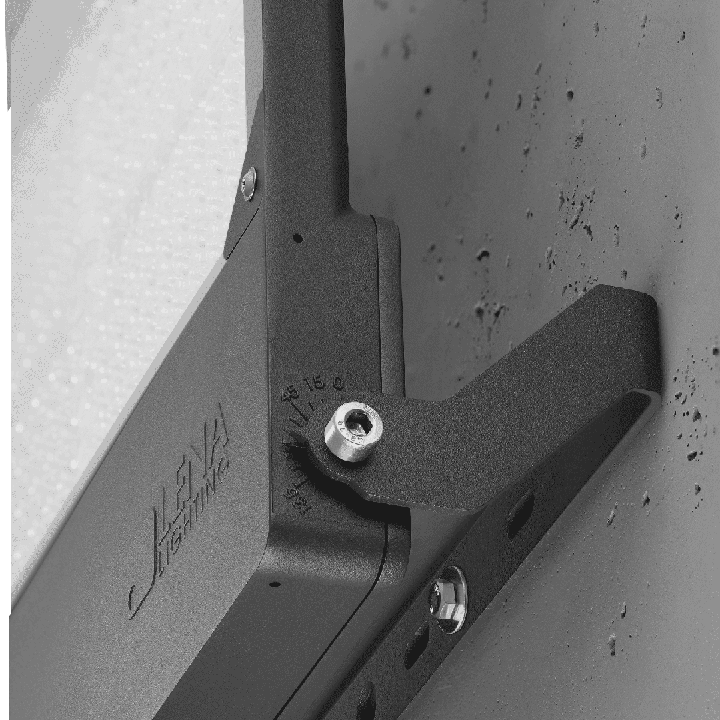

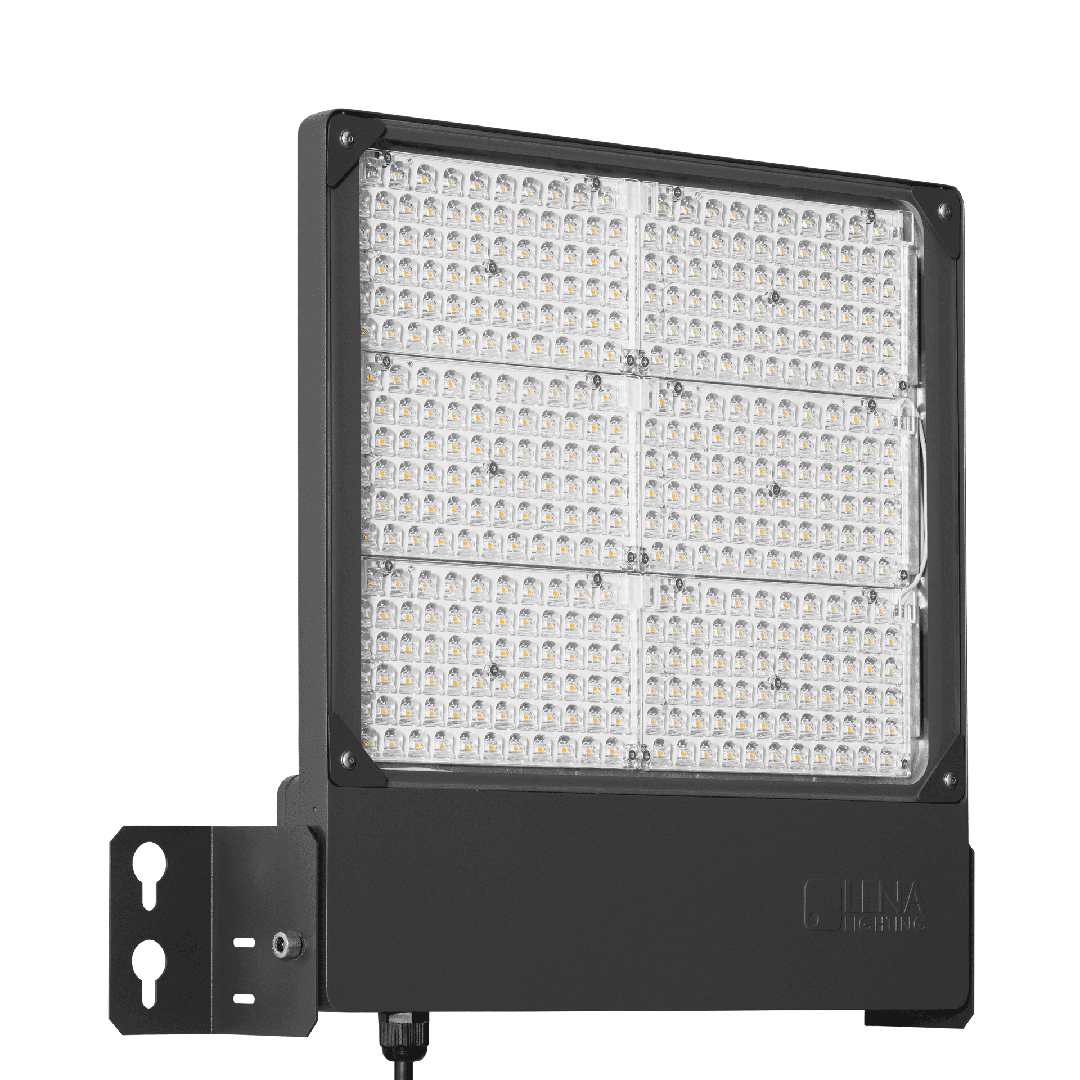

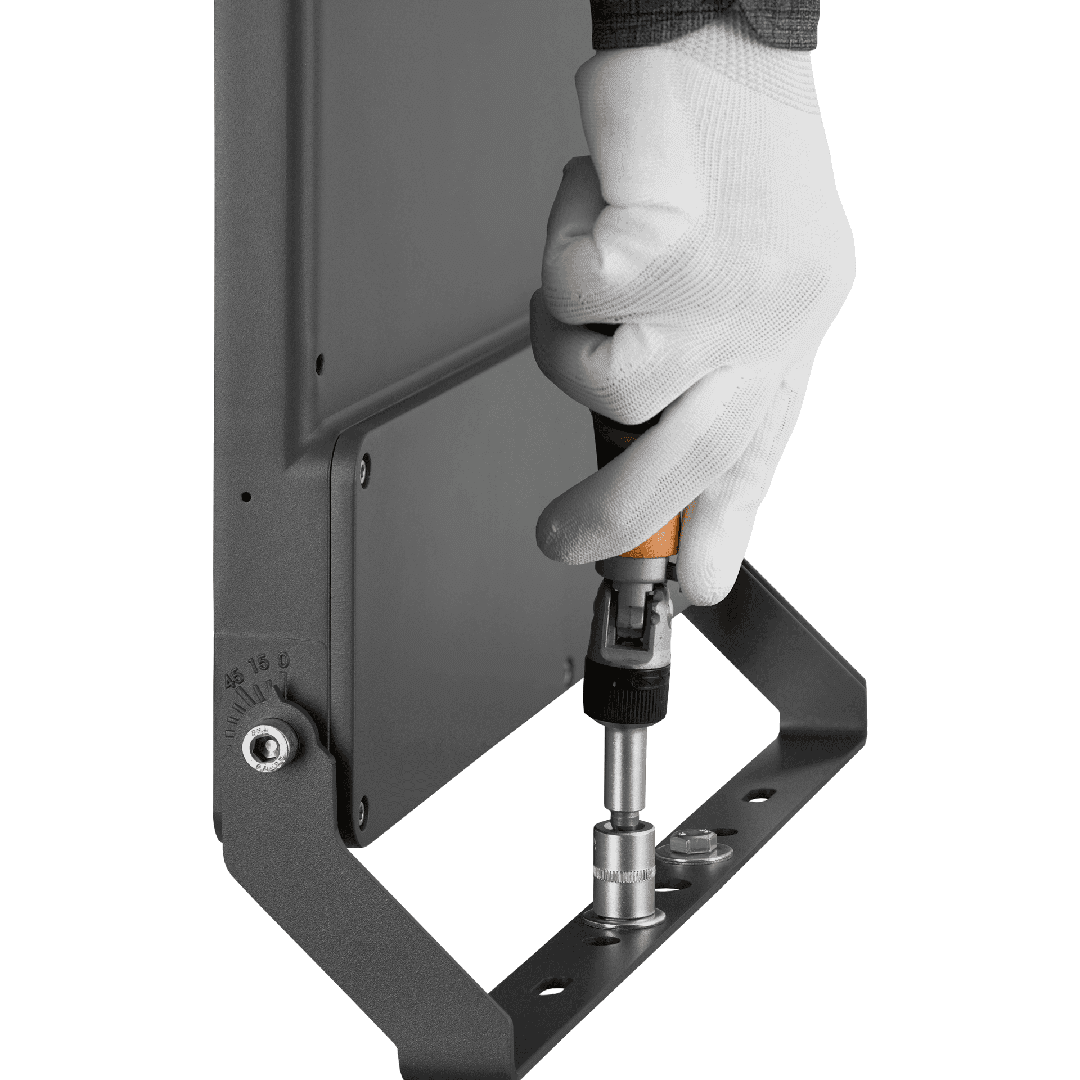

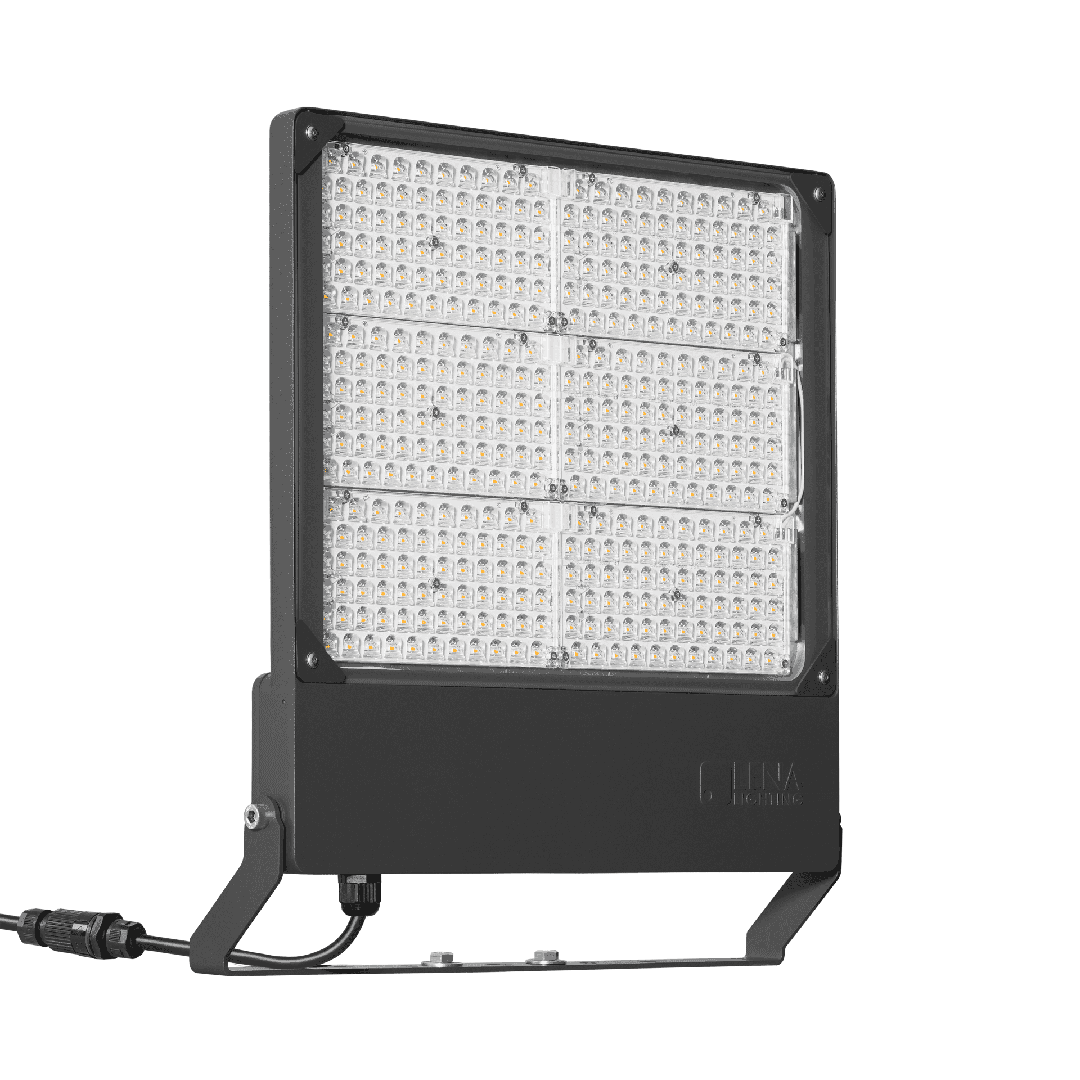

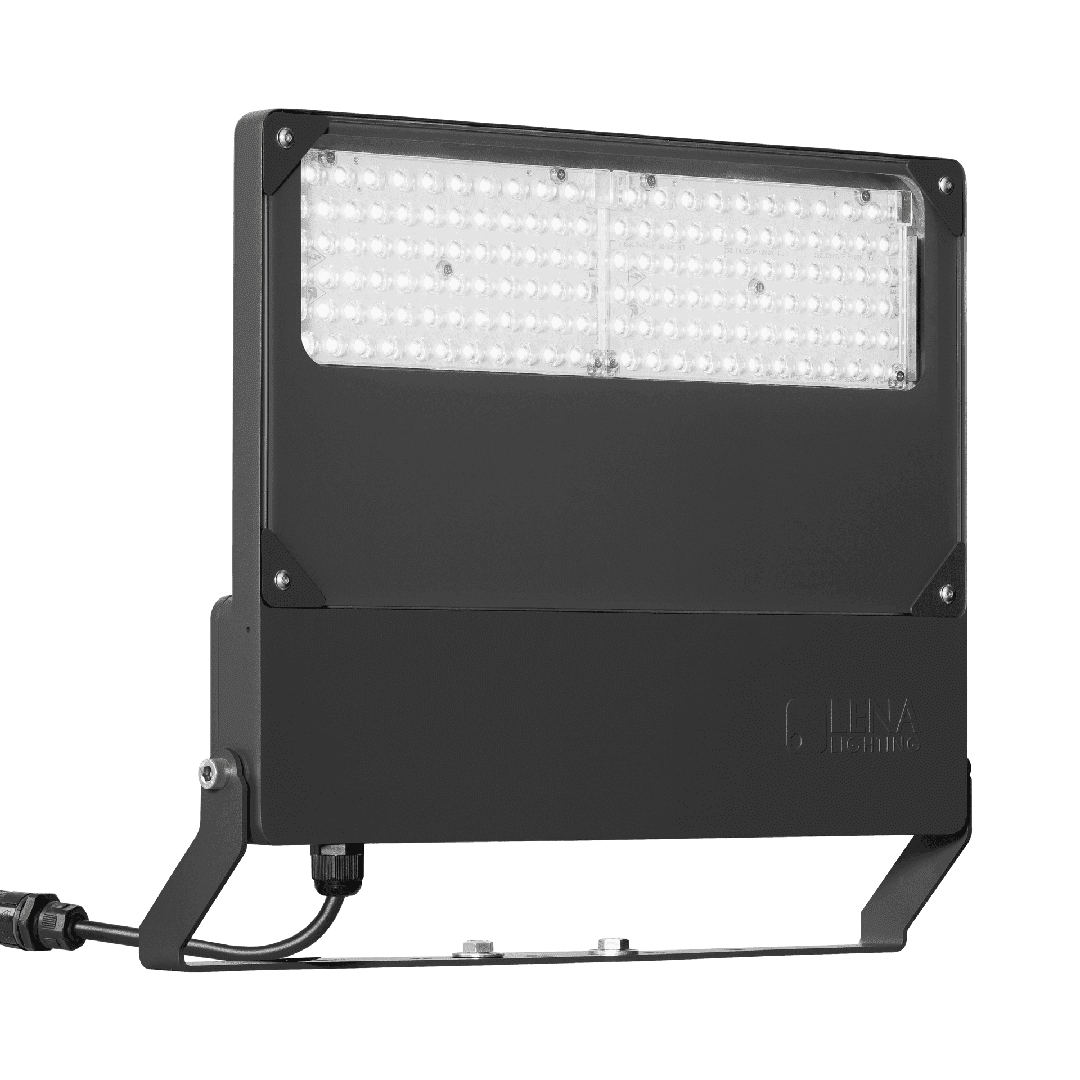

High-quality floodlight with inbuilt LED source. The body is made of die-cast aluminium, powder coated in anthracite grey (RAL 7016), and the mounting bracket is made of black-painted steel. The diffuser is made of 5 mm thick tempered glass. It is equipped with directional lens matrices with 3 different light distributions: symmetrical (120°), asymmetric narrow ASN and asymmetric wide ASW. Non-corrosive mounting bracket allowing for adjustment angles between -140° to +185°. The luminaire is available in 2 sizes: M and L. Standard equipped with 0.1m long H07RN-F cable and IP66 quick connector. Wide range of accessories available: protective net, grip for the lighting pole, wall bracket.

Specification IoT

Quest 2 LED IoT - explanation of the different versions:

The IoT RC PIR HYT DALI version has: PIR motion and daylight sensor programmable by the RC remote control and DALI driver driver enabling dimming of the light source.
The IoT BT PIR HYT DALI version has: a built-in BT HYT module that allows you to program functions in the Lena Lighting Clue app and control in real time; PIR motion and daylight sensor and DALI driver for dimming the light source.
The IoT RC PIR HYT version has: PIR motion and daylight sensor programmable by RC remote control and ON/OFF driver without dimming function of the light source.

Application

Lighting of educational, educational and administrative facilities, halls, garages, passages, warehouses, shops, food industry and commercial and service facilities related to food products.

Options

Nominal power [W]	Colour temperature [K]	Luminous flux [lm]	Beam angle [°]	Ingress protection	PIR	DIMM DALI	Version	Index
108	5000	14700	120	IP66	yes	yes	RC PIR HYT DALI	695025
103	3000	13500	ASW	IP65	yes	yes	RC PIR HYT DALI	699658

Accessories

Hide accessories

Index	Accessory name
699993	QUEST 2 LED M - recessed frame
699986	QUEST 2 LED L - recessed frame
699962	QUEST 2 LED L protective grid RAL7016
699979	QUEST 2 LED M protective grid RAL7016
567728	QUEST 2 LED M/L Pole holder

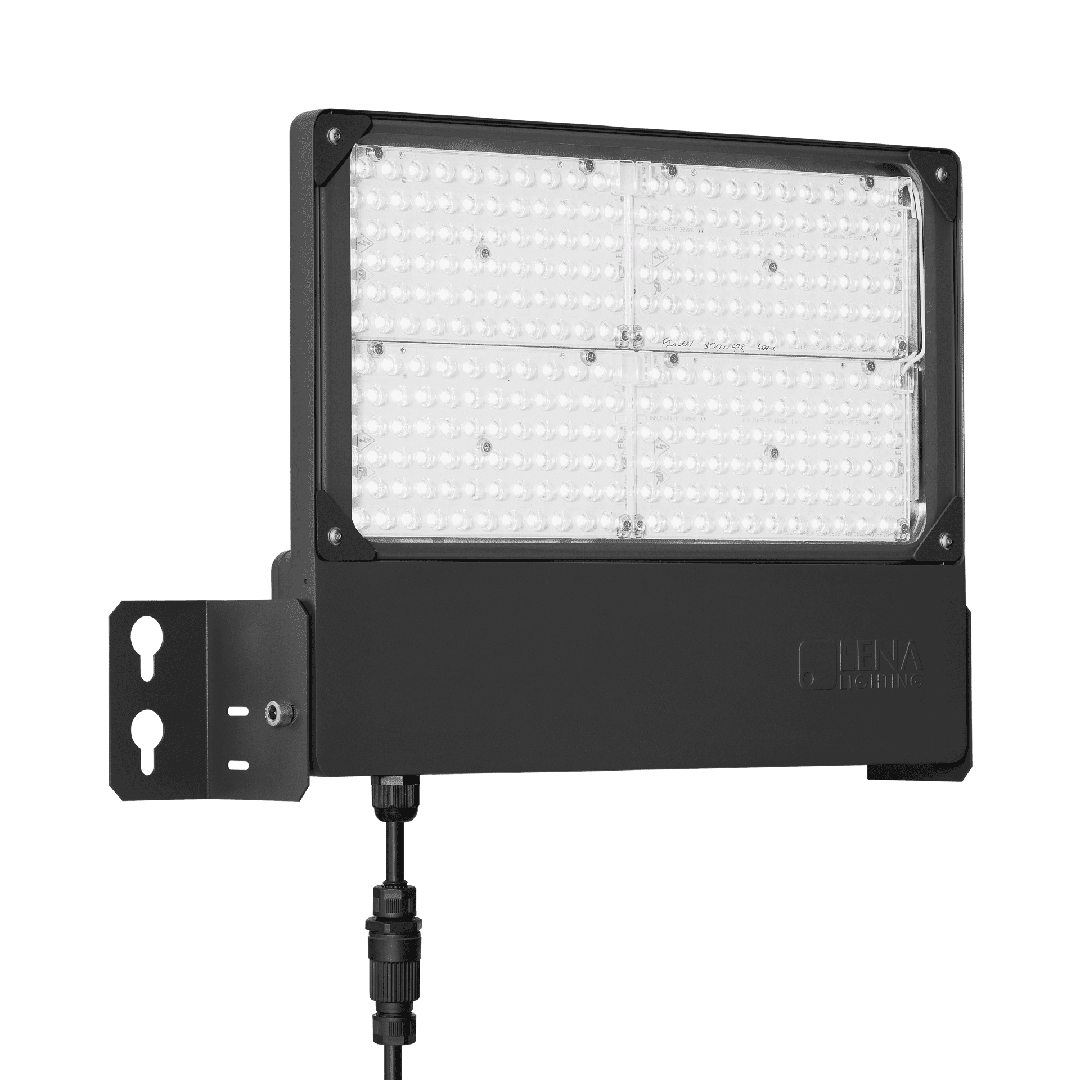

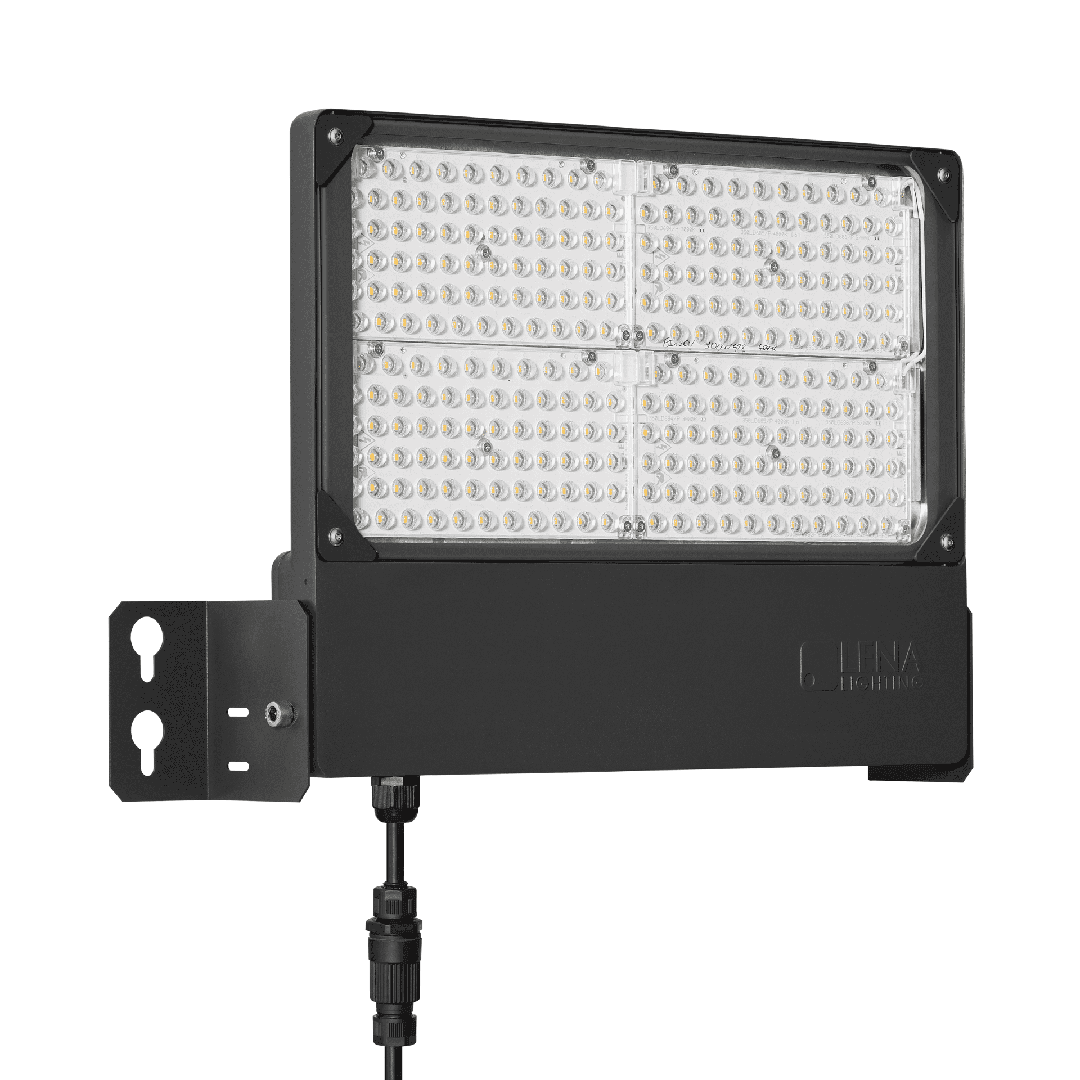

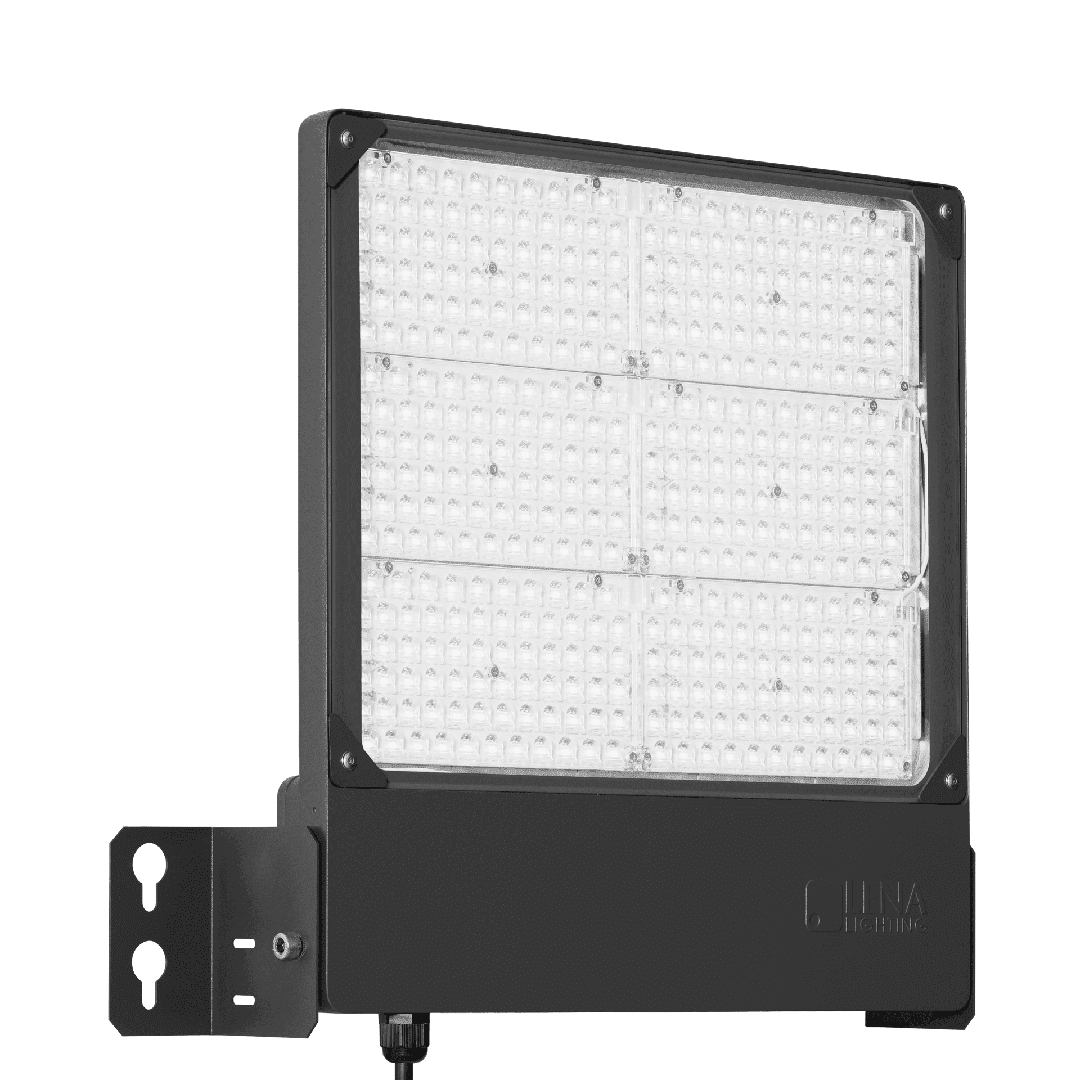

965913	QUEST 2 LED M/L MAX wall mount RAL7016
559938	QUEST PLUS LED M/L wall holder RAL9006

QUEST 2 LED M - recessed frame (699993)

QUEST 2 LED L - recessed frame (699986)

QUEST 2 LED L protective grid RAL7016 (699962)

QUEST 2 LED M protective grid RAL7016 (699979)

QUEST 2 LED M/L Pole holder (567728)

QUEST 2 LED M/L MAX wall mount RAL7016 (965913)

QUEST PLUS LED M/L wall holder RAL9006 (559938)
