Contra II LED IoT

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

A new generation of LED panels with the highest efficiency. The IoT RC DS HYT DALI version features: a built-in daylight sensor DS programmable via the RC (HRC-11) remote control, and a DALI driver enabling dimming of the light source.

Light source	LED
Colour temperature	4000K
Diffuser type	MAT
Mounting version	recessed surface suspended
Dimensions [mm]	595/595/30; 1195/295/30
Application	commercial educational HoReCa art and culture office

LEDIIIP40/20pzhCEEPD

Ask about this product

Options

Contra II LED IoT

Ask about this product

Options

Light source	LED
Colour temperature	4000K
Diffuser type	MAT
Mounting version	recessed surface suspended
Application	commercial educational HoReCa art and culture office

Downloads

Download All

Specification

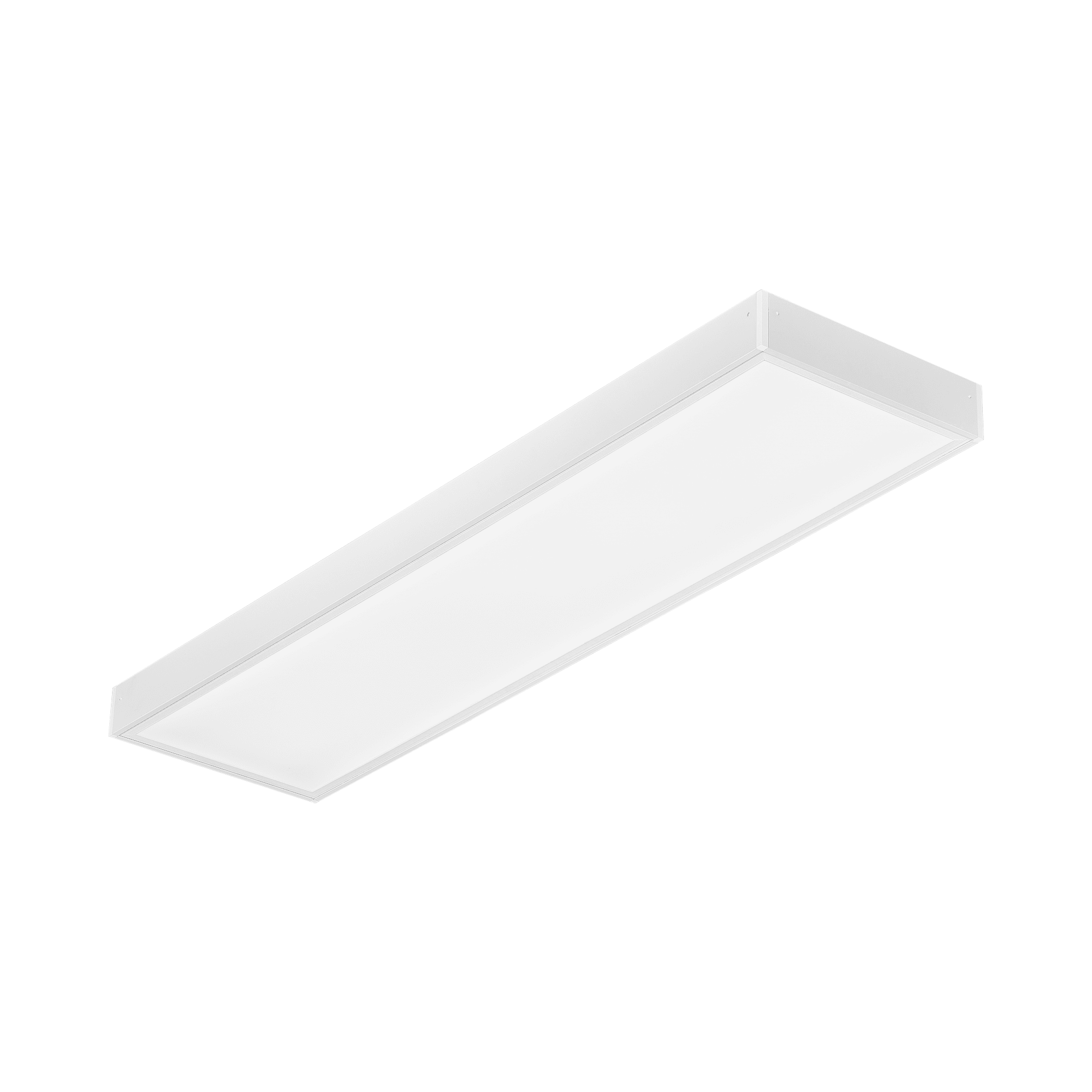

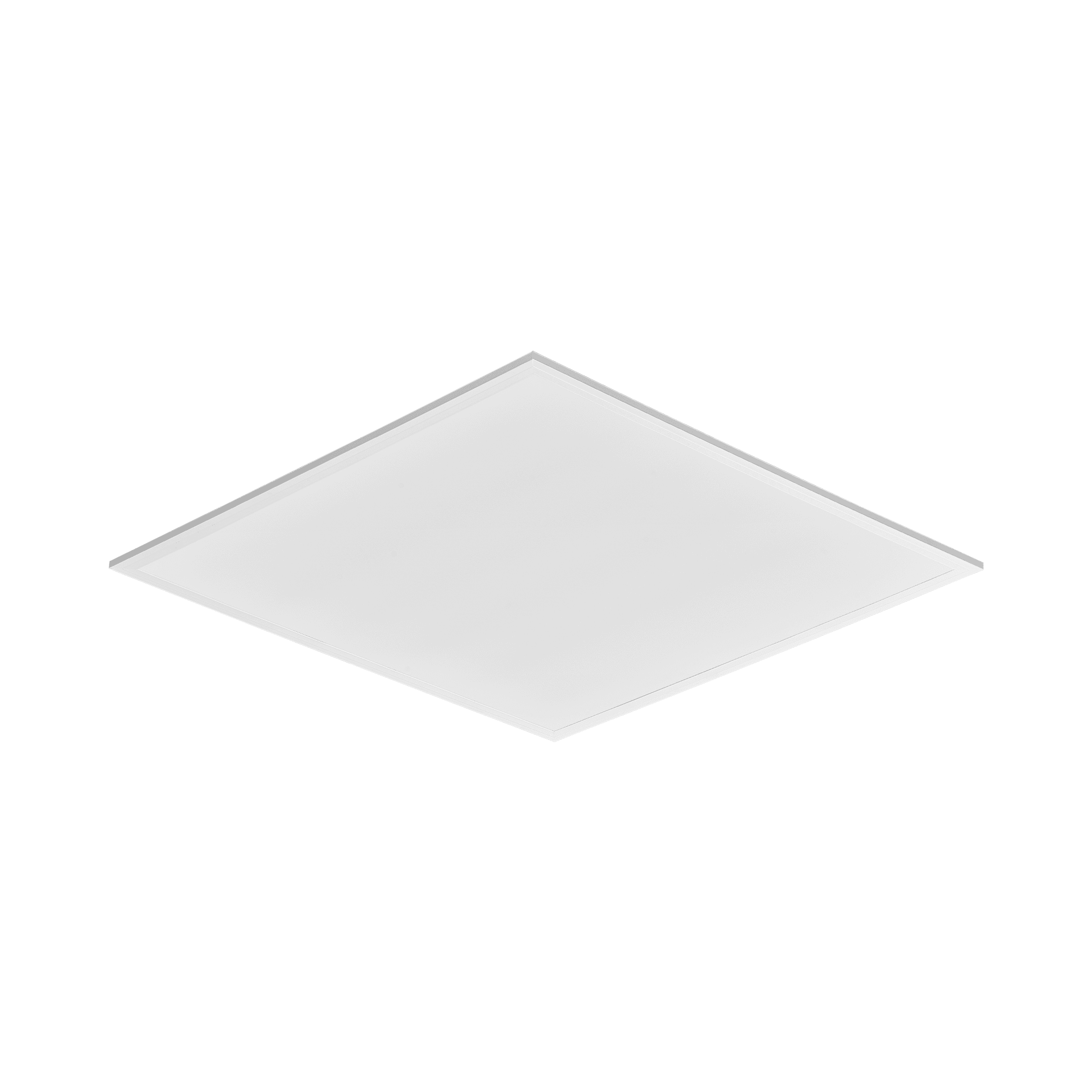

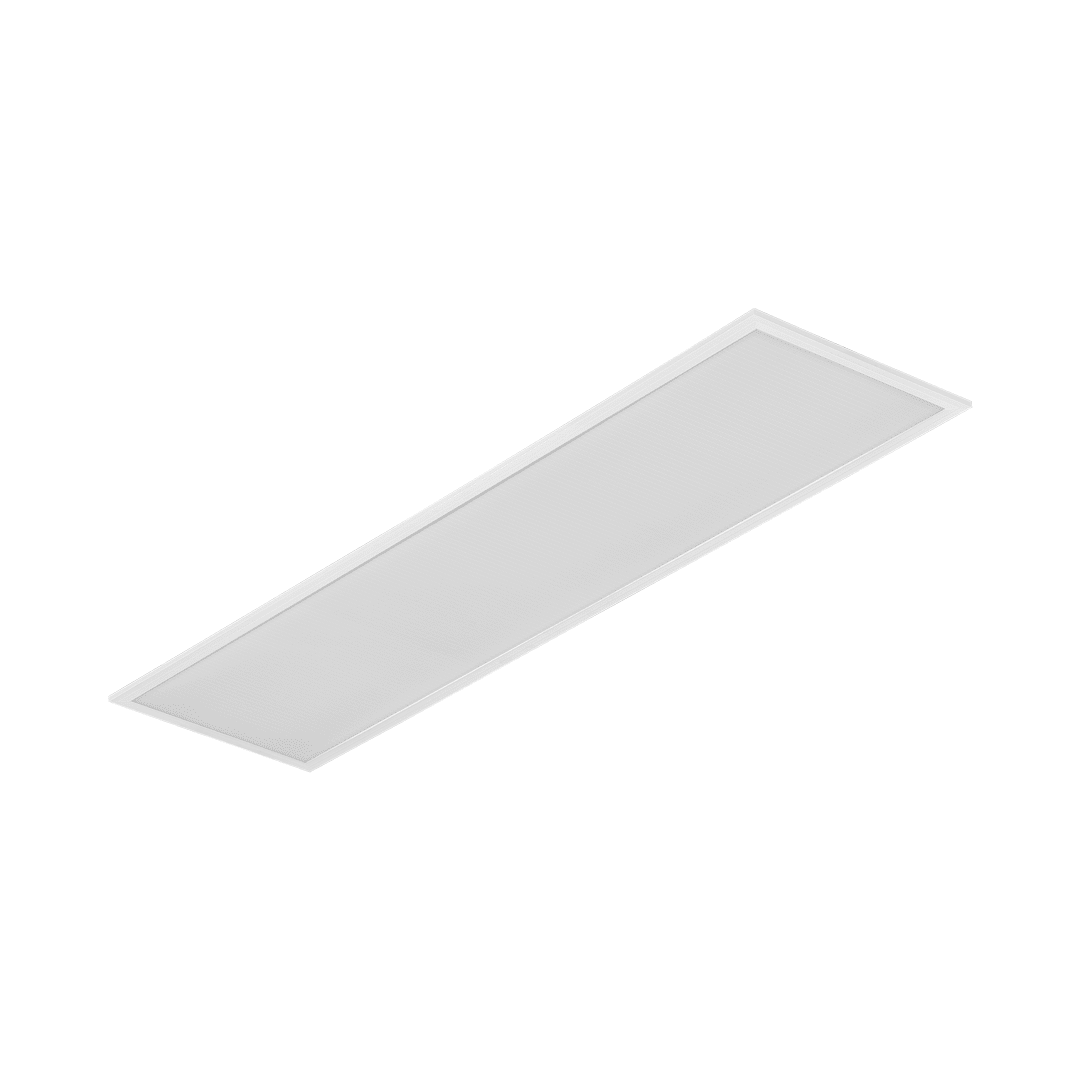

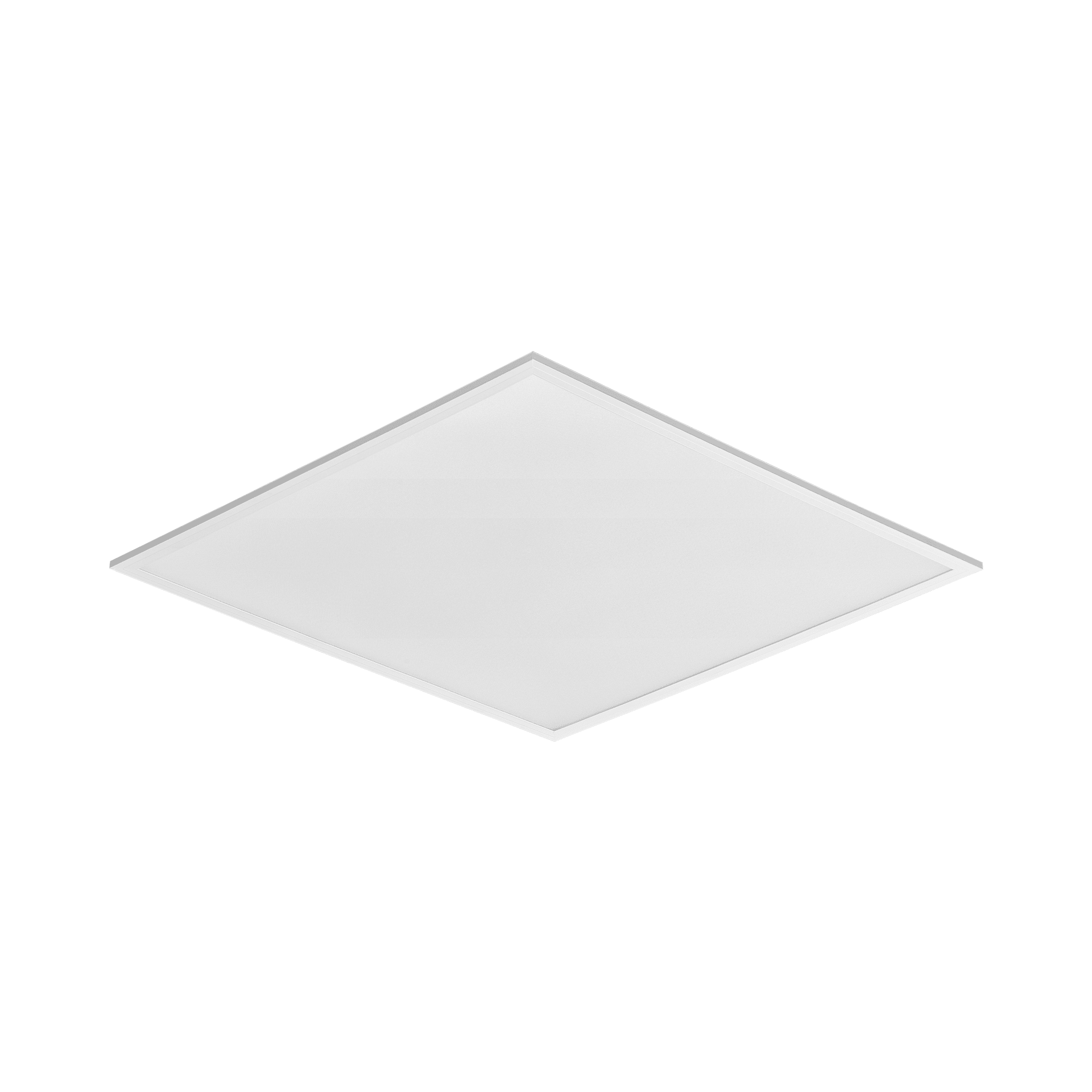

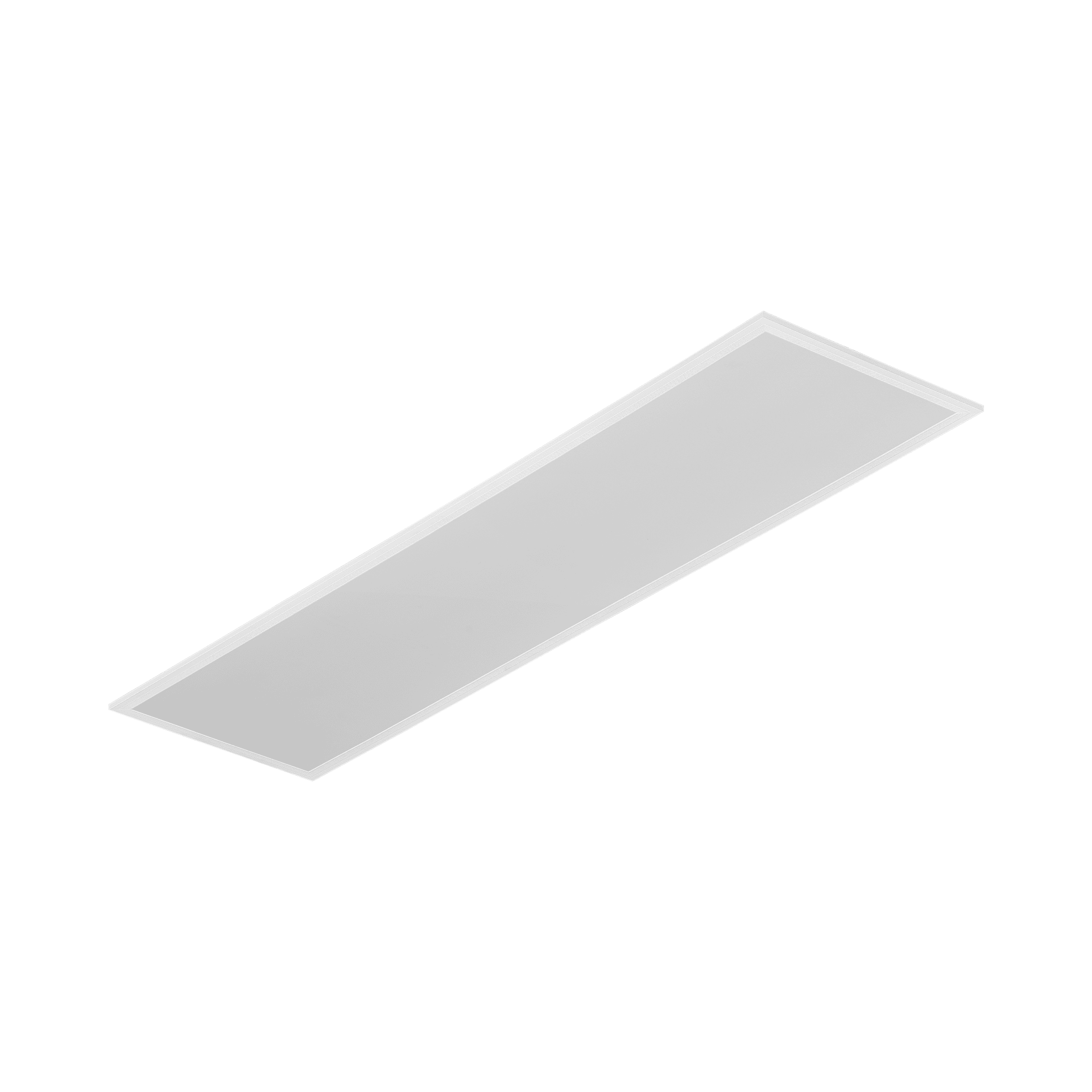

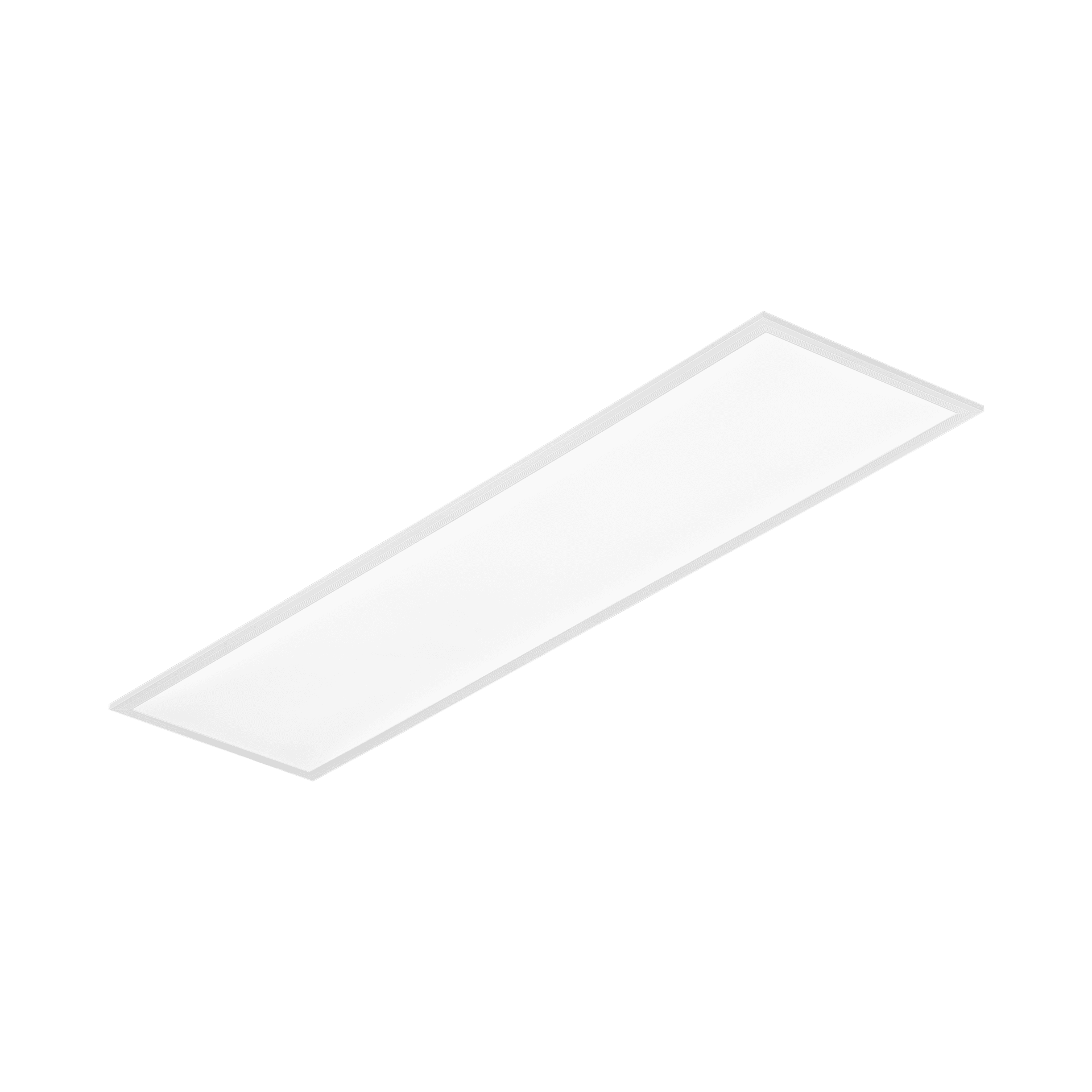

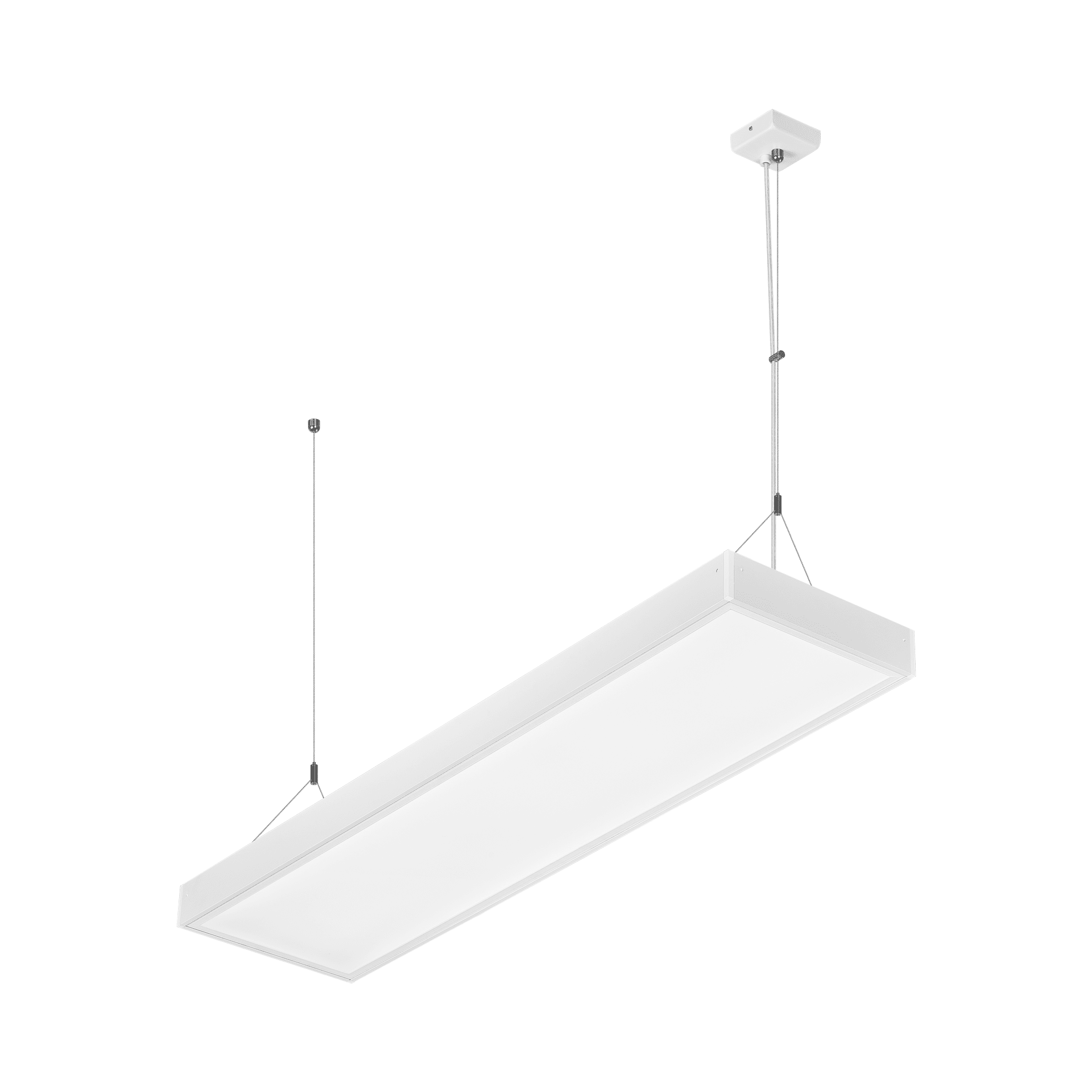

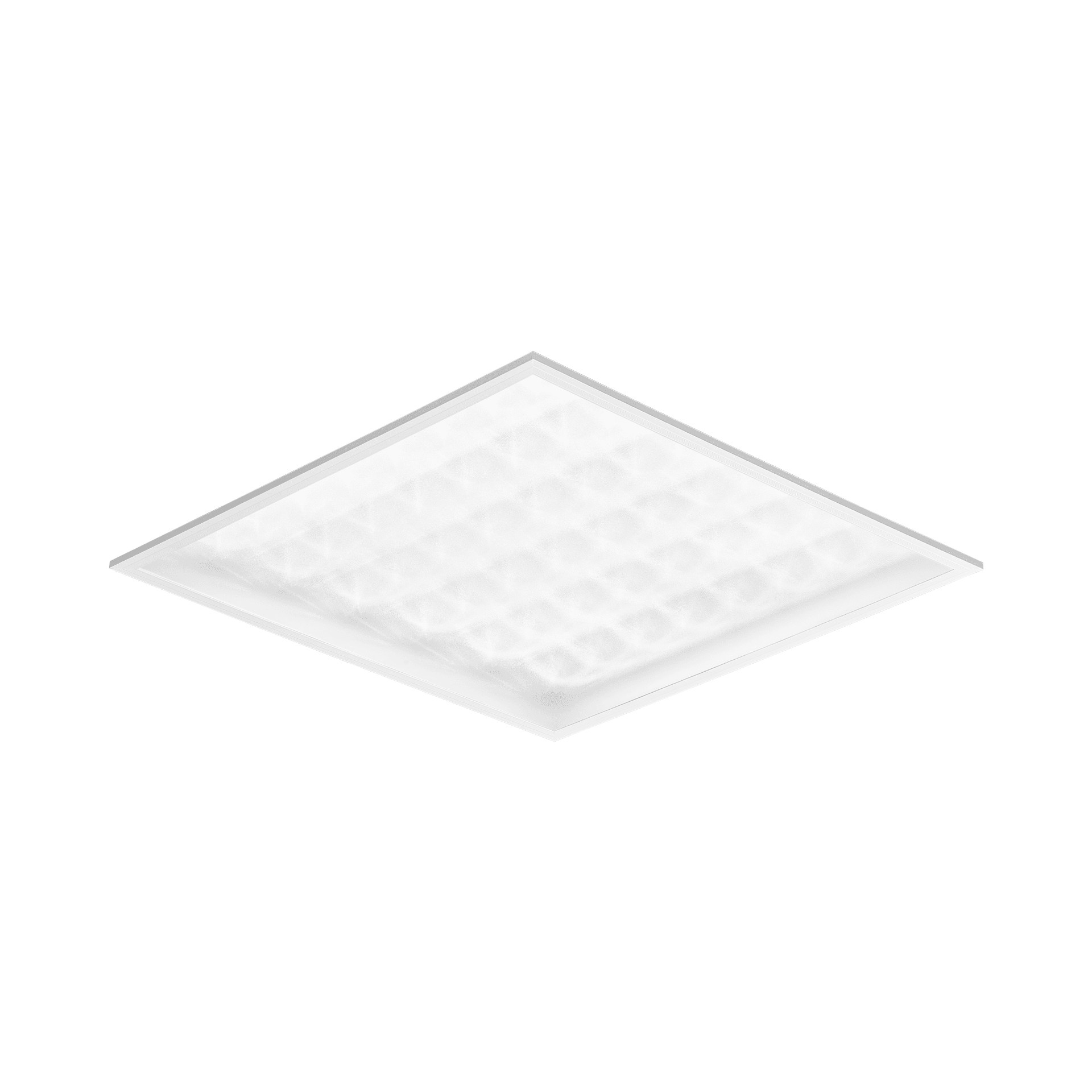

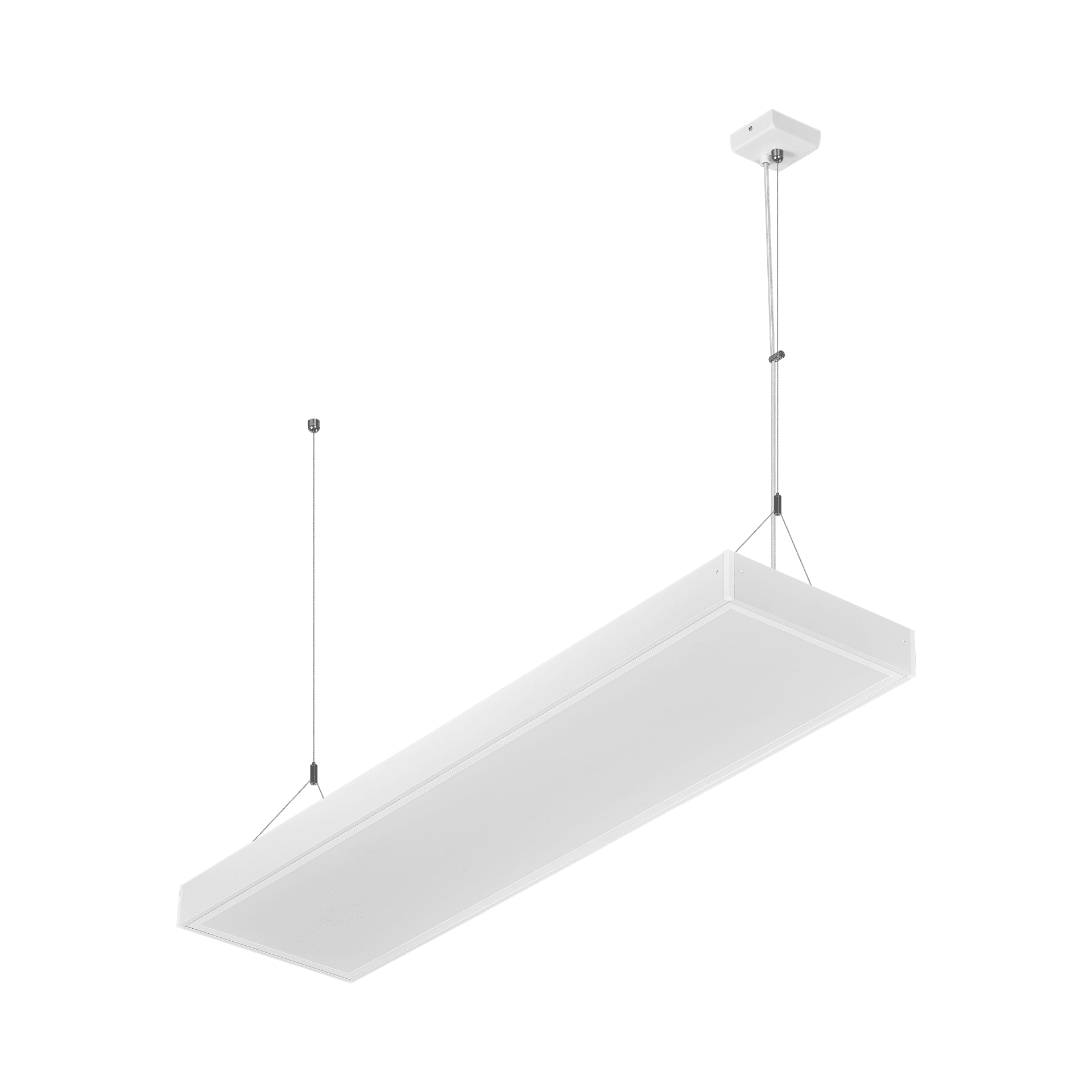

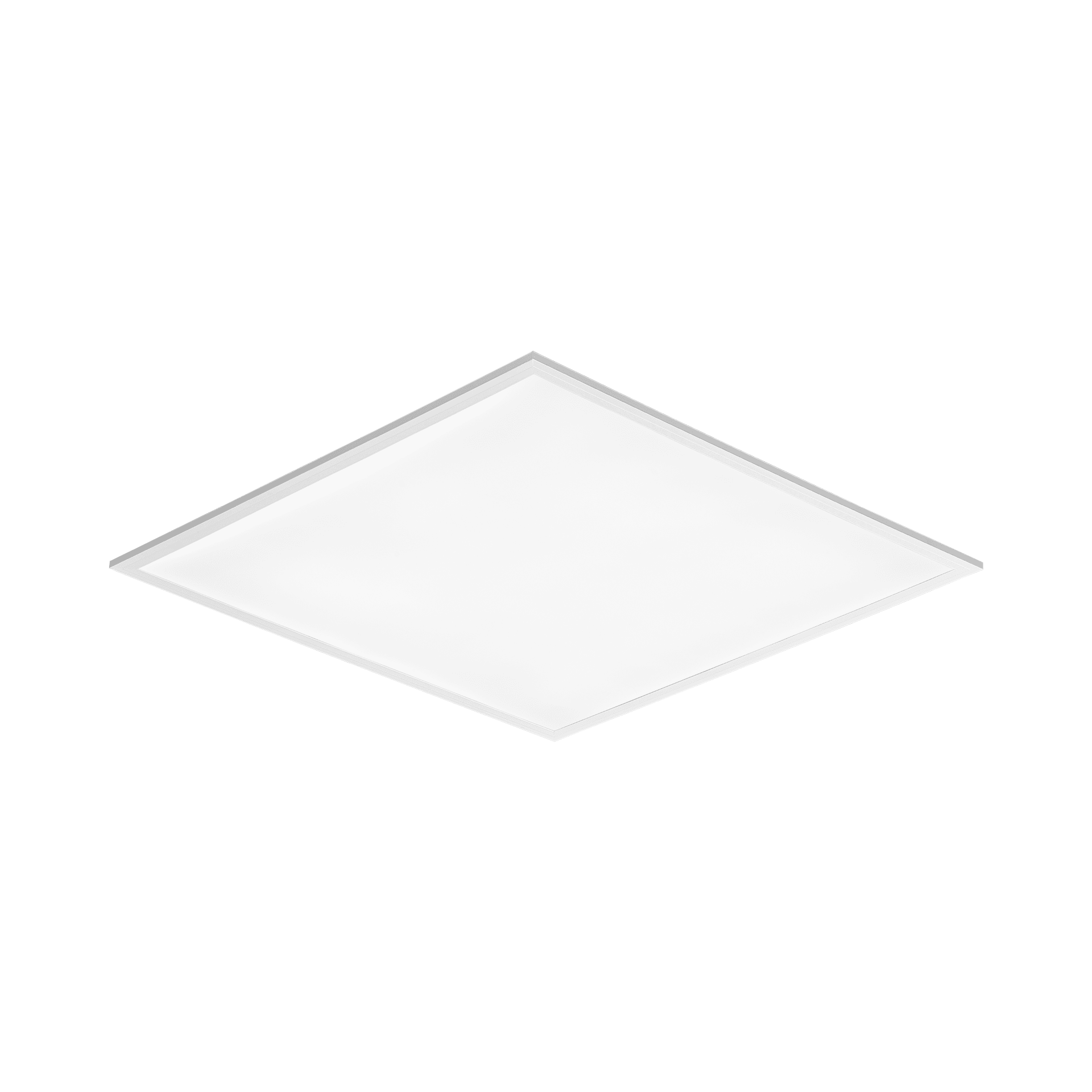

Contra II LED IoT versatile LED panel characterised by its low, slim profile and elegant design. Adapted for flush-mounted installation in modular ceilings, surface-mounted or suspended using an additional frame (available as an accessory). Luminaire with integrated energy-saving LED module, made of white painted aluminium profile, equipped with structured multi-layer PS MAT or PRM shade for perfect light diffusion. Contra II LED IoT is a new version of the proven series of LED cassette panels, designed for maximum energy efficiency, user comfort and modern commercial and office spaces. The use of a new, high-efficiency LED module with a luminous efficacy of 145–163 lm/W significantly reduces energy consumption while maintaining high light quality. Contra II LED IoT is ideally suited to the requirements of modern investments where energy efficiency, durability and compliance with current lighting standards are of key importance.

Characteristics IoT

The IoT RC DS HYT DALI version features: a built-in daylight sensor DS programmable via the RC (HRC-11) remote control, and a DALI driver enabling dimming of the light source.

Application

The luminaire is intended for indoor use in office (offices, conference rooms) or representative use (hotels, restaurants); illumination of public facilities, including hospitals, educational facilities, offices, halls, garages, passageways, warehouses, shops, as well as in the food industry and food-related retail and service facilities. The unique design and excellent light performance enable Contra II LED IoT to be used as the main source of light, also for work that requires visual focus. The lamp is suitable for both new applications and the replacement of traditional T8 and T5 luminaires with energy-efficient LED solutions.

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	DIMM DALI	Control	Version	Dimensions (H/W/T/S) [mm]	Index
24	4000	3200	yes	DS.	DS HYT DALI	1195/295/60	761348
24	4000	3200	yes	DS.	DS HYT DALI	595/595/60	761324
31	4000	4300	yes	DS.	DS HYT DALI	1195/295/60	761331
31	4000	4300	yes	DS.	DS HYT DALI	595/595/60	761317
36	4000	5000	yes	DS.	DS HYT DALI	595/595/60	761300

Show more ↓ Show less ↑

Accessories

Hide accessories

Index	Accessory name
374715	CONTRA LED surface-mounted frame CLICK 600x600x65mm
374708	CONTRA LED surface-mounted frame CLICK 1200x300x65mm
374692	CONTRA LED suspension system 1200x300
374685	CONTRA LED suspension system 600x600
374838	CONTRA LED MOUNTING CLIPS IN KG (4PCS)
374845	Frame adapter KG 635x635 WHITE
374852	Frame adapter KG 1235x335 WHITE
998966	Frame steel white structure RAL9016 600x600 SM "well effect"
374722	CONTRA LED suspension system 600x600 DALI
374739	CONTRA LED - suspension system 1200x300 DALI
761294	Emergency module 2W/10-50V Li-ION EMG-A-Li-2L 3h 3.6V 2.5Ah AT - CONTRA (GKO)

CONTRA LED surface-mounted frame CLICK 600x600x65mm (374715)

CONTRA LED surface-mounted frame CLICK 1200x300x65mm (374708)

CONTRA LED suspension system 1200x300 (374692)

CONTRA LED suspension system 600x600 (374685)

Frame adapter KG 635x635 WHITE (374845)

Frame steel white structure RAL9016 600x600 SM "well effect" (998966)
