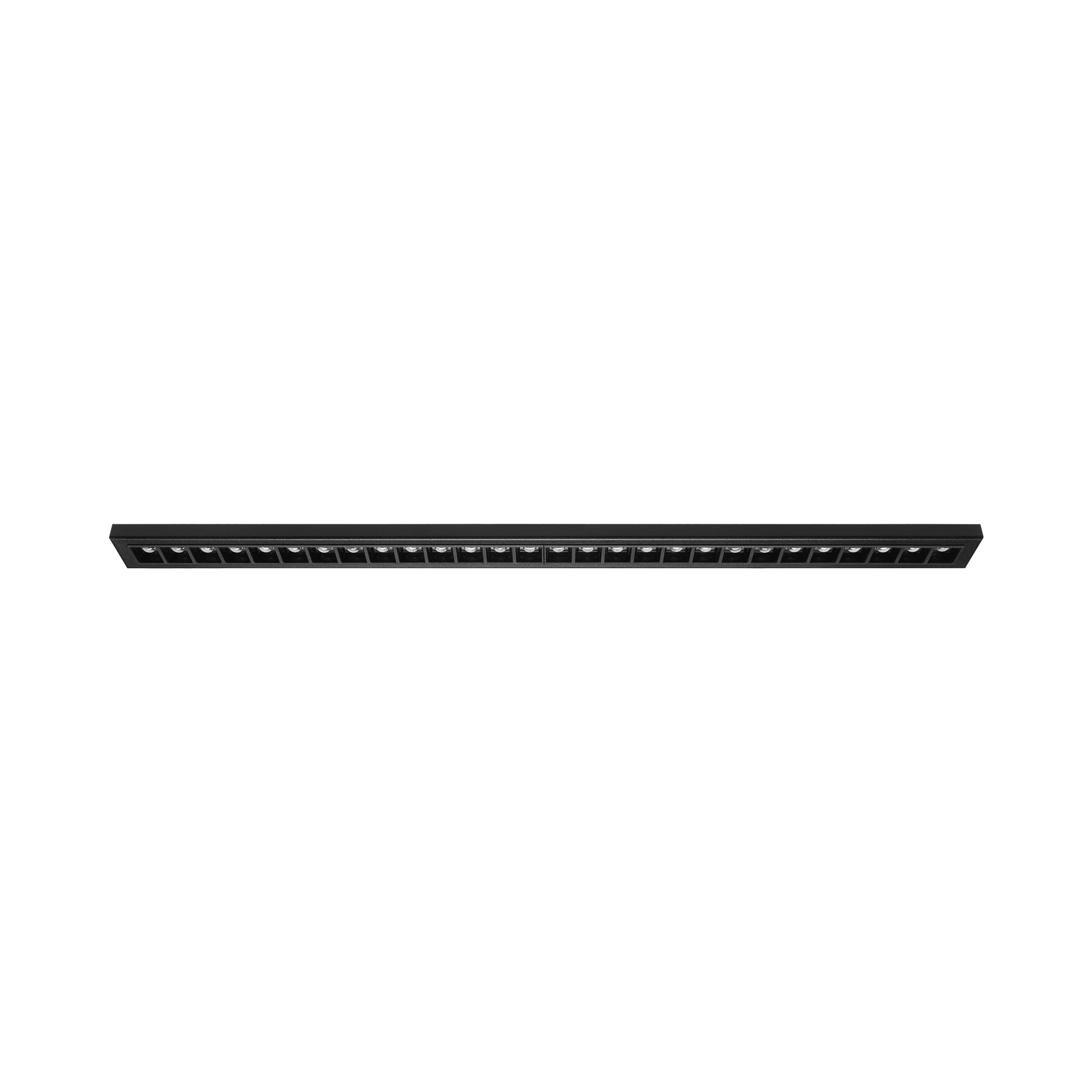

Terrano

Terrano luminaires are characterised by excellent performance and many conveniences. Above all, it can be installed quickly on the supporting structure of a modular ceiling.

Technical specifications

Light source	LED
Colour temperature	3000K 4000K
Application	commercial HoReCa architectural office

LEDIICEQuick installation

Ask about this product

Options

Downloads

Specification

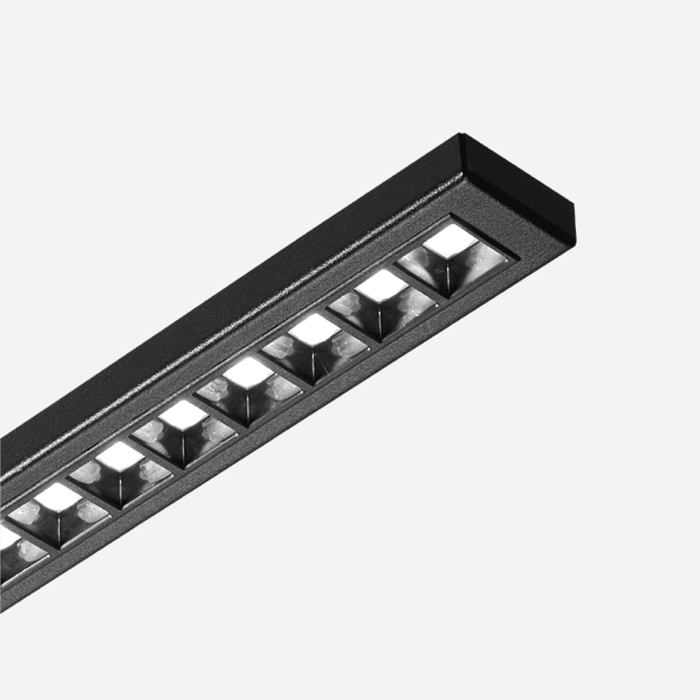

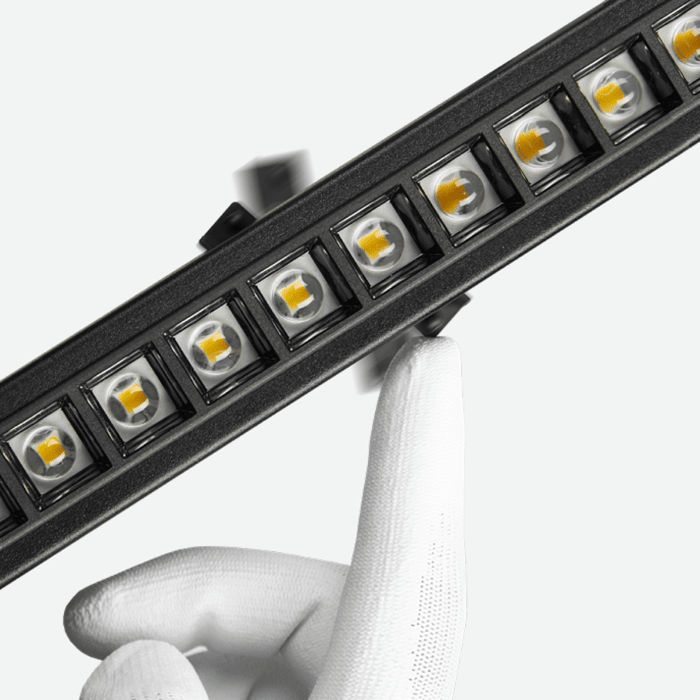

The new linear luminaire in the form of a compact louver with LEDs and focusing lenses enables extremely effective glare reduction (UGR between 12 and 19). Terrano luminaires are characterised by excellent performance and many conveniences. Above all, it can be installed quickly on the supporting structure of a modular ceiling. The same luminaire can be relocated just as quickly. Changing the location will leave no trace of the mounting holes. For convenience and aesthetics, the luminaire has an extra-thin power cable, which fits between the structure and the ceiling tile. Terrano, a plastic luminaire in a slim steel housing, is available in two colour temperatures, 3000 K and 4000 K, and in two colours, white and black.

Application

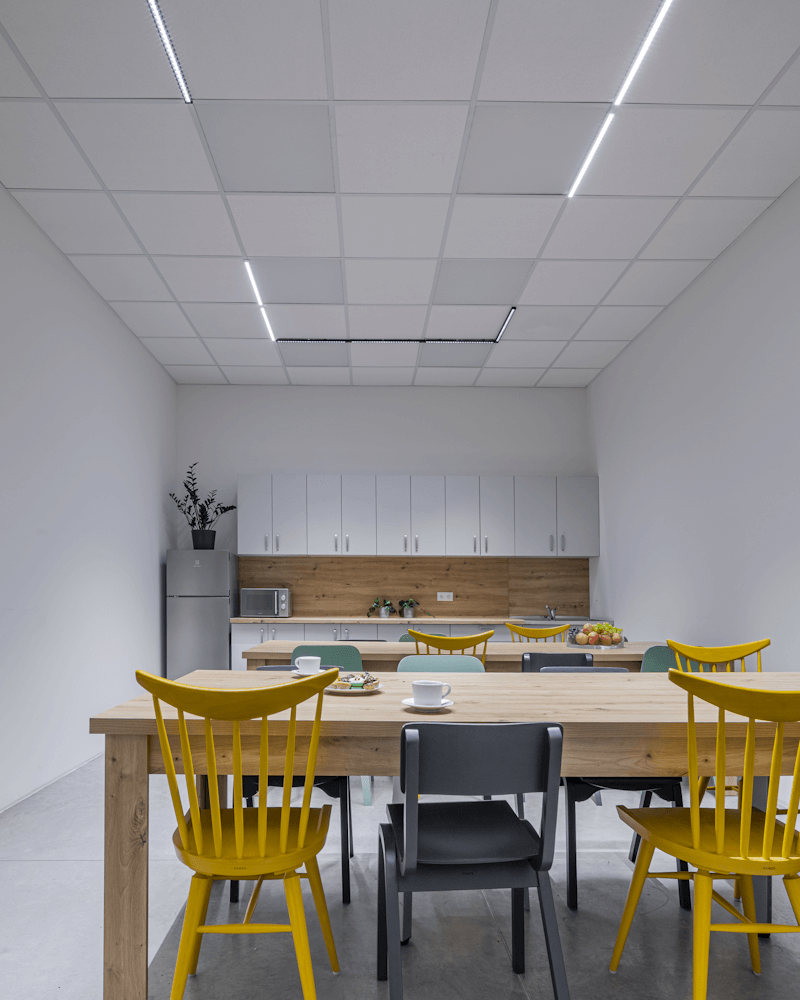

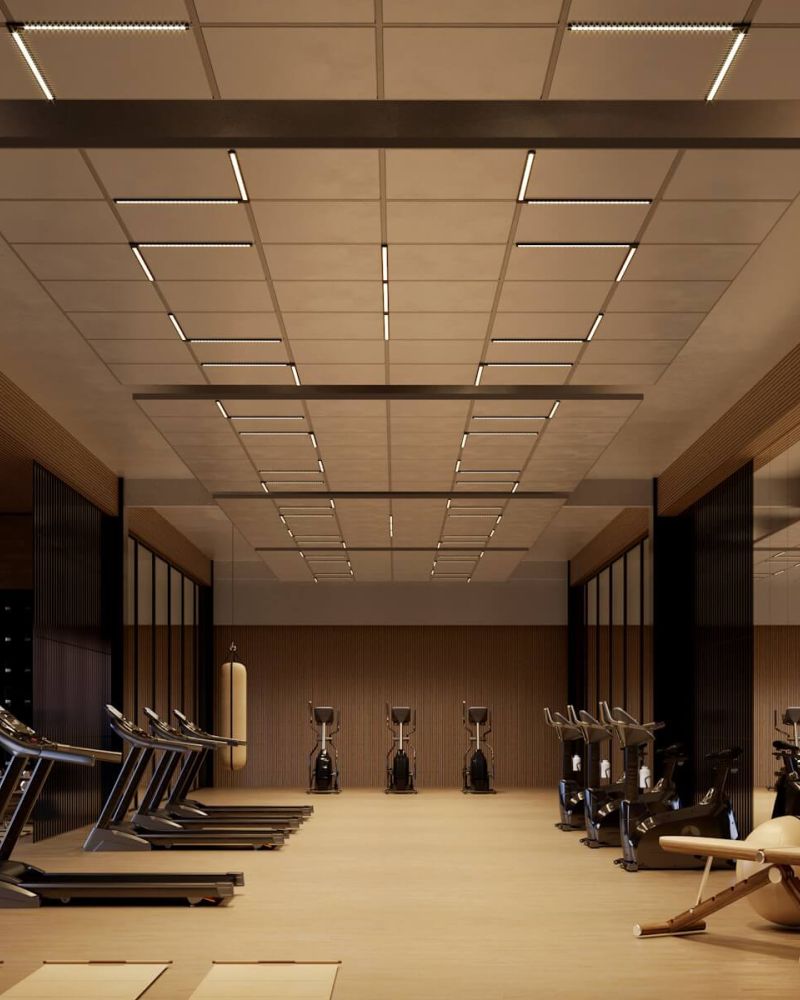

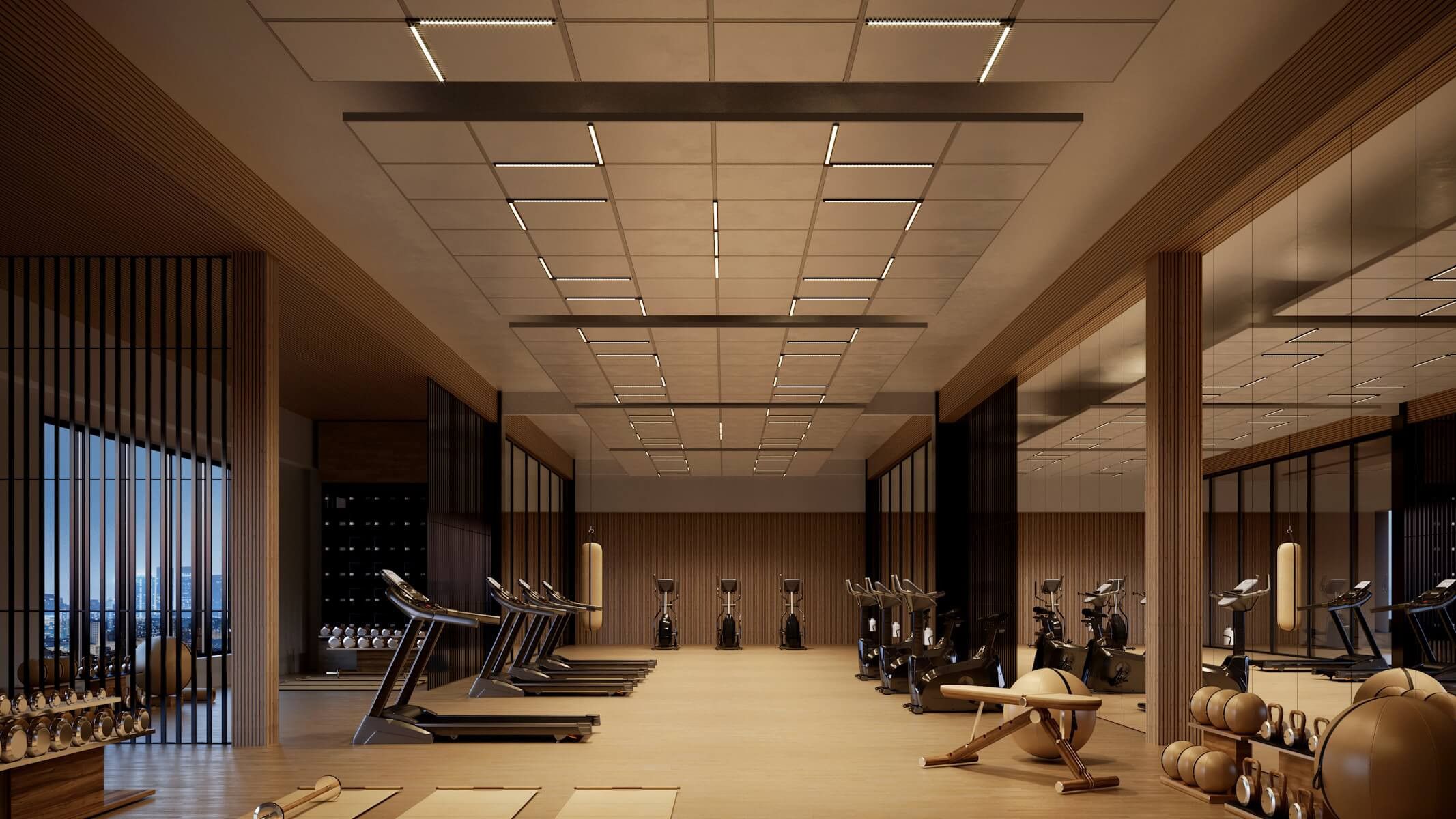

Terrano can be fitted directly into modular ceiling profiles to provide general lighting, but can also be used to spotlight selected elements of a space. Terrano will become both a striking element of modern arrangements where lighting plays a key role and a complement to subtle, minimalist spaces.

*DUO- version of double lamp on one power supply

See - One, two, three...Terrano

Lighting configurator

Use our lighting configurator and create your dream layout from Terrano luminaires yourself. Use the square connector to connect them in straight lines or at right angles. Create phenomenal lighting compositions and bring a touch of futurism to your interior. Terrano is attached directly to the modular ceiling profile.

Create a line of light

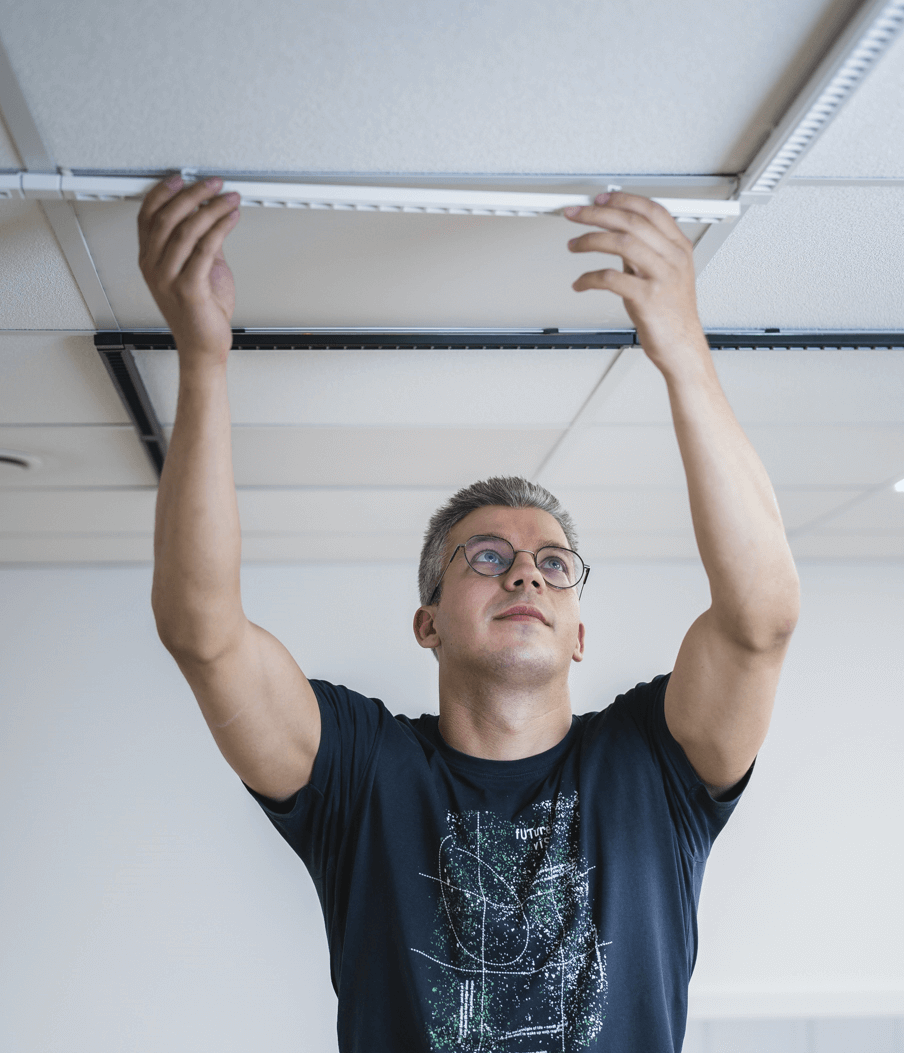

Super-quick assembly

Thanks to the rotating hooks, the assembly of a single module is a matter of a few seconds. Just click the luminaire in and connect the power supply.

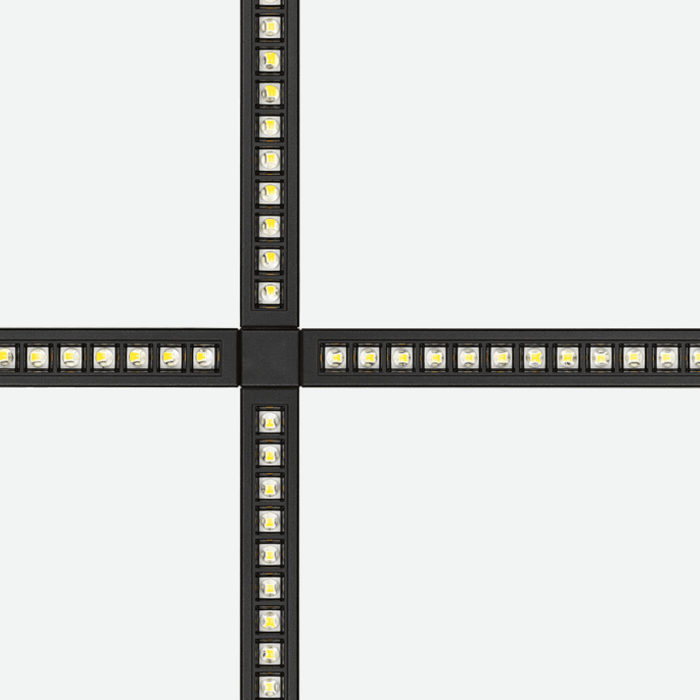

Creating light figures

Thanks to the special connectors, it is possible to connect the luminaires in a variety of fixtures to obtain interesting lighting compositions on a modular ceiling.

Low UGR <19

Terrano’s key parameter is the glare rating remaining within the limits of UGR 12-19, which guarantees the most comfortable conditions of use.

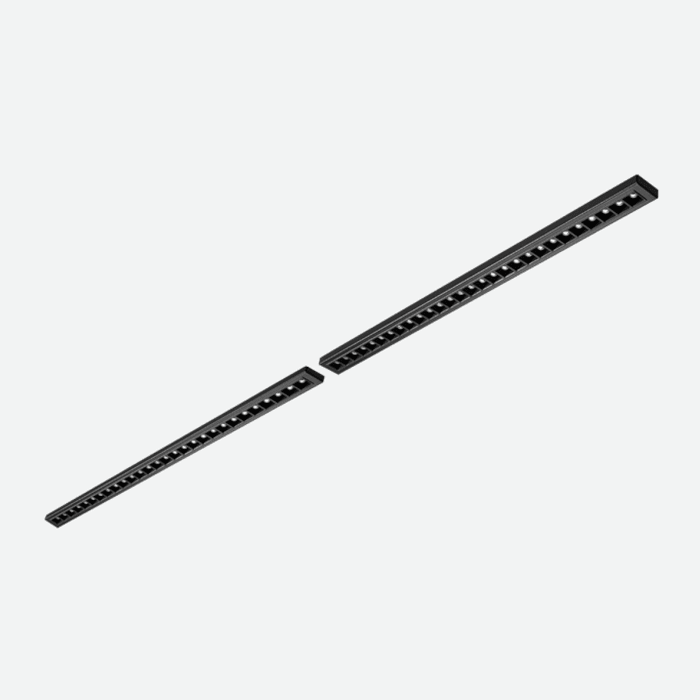

DUO version

The luminaire is offered in the DUO version – where two light modules connected to each other can be mounted directly next to each other – with a connector or separately.

One family - many applications - 4 different versions

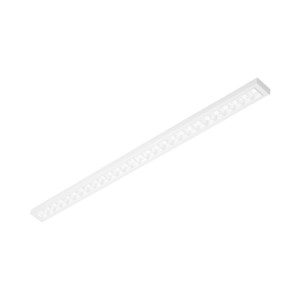

Terrano

Luminaire for installation in modular ceilings - directly into the profile. Flexibility to change the mounting location - without leaving any no trace of mounting holes.

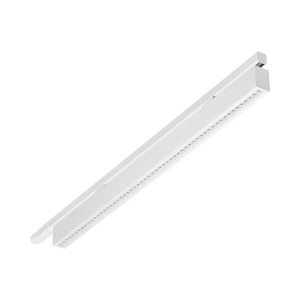

Terrano S

The 566mm long version allows 360° rotation around its axis, the longer version does not. The luminaire is available in two colour versions: white and black.

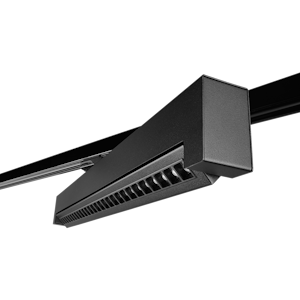

Terrano S/R

The 630mm-long version allows 360° rotation around its axis and 45° rotation of the light system. The 1180mm version only allows for 45° rotation of the lighting system.

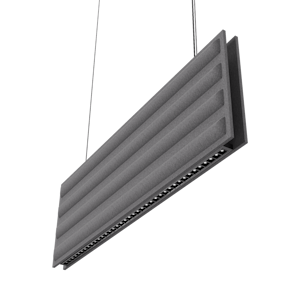

Colline x Terrano

Acoustic luminaire in many colour and design options. 3 panel heights with different embossing and felt colours: 120x20cm (D,A),120x40cm and 120x60cm (plain, A,B,C,D,E).

Options

Rated power of the luminaire [W]	Colour of the body	Luminous flux [lm]	Colour temperature [K]	DIMM DALI	Version	Dimensions (H/W/T/S) [mm]	Index

9	black	1050	3000	-	-	17/568/33	937286
9	black	1100	4000	-	-	17/568/33	937088
9	white	1150	3000	-	-	17/568/33	937231
9	white	1200	4000	-	-	17/568/33	937033

16	black	1750	3000	-	-	17/568/33	937293
16	black	1850	4000	-	-	17/568/33	937095
16	white	1950	3000	-	-	17/568/33	937248
16	white	2050	4000	-	-	17/568/33	937040

22	black	2300	3000	-	-	17/568/33	937262
22	black	2300	3000	yes	-	17/568/33	937255
22	black	2400	4000	-	-	17/568/33	937064
22	black	2400	4000	yes	-	17/568/33	937057
22	white	2500	3000	-	-	17/568/33	937217
22	white	2500	3000	yes	-	17/568/33	937200
22	white	2650	4000	-	-	17/568/33	937019
22	white	2650	4000	yes	-	17/568/33	937002

28	black	2700	3000	-	-	17/568/33	937279
28	black	2850	4000	-	-	17/568/33	937071
28	white	2950	3000	-	-	17/568/33	937224
28	black	3000	3000	-	DUO*	17/568/33	937361
28	white	3150	4000	-	-	17/568/33	937026
28	black	3200	4000	-	DUO*	17/568/33	937163
28	white	3300	3000	-	DUO*	17/568/33	937316
28	white	3500	4000	-	DUO*	17/568/33	937118

35	black	3700	3000	-	DUO*	17/568/33	937385
35	black	3900	4000	-	DUO*	17/568/33	937187
35	white	4100	3000	-	DUO*	17/568/33	937330
35	white	4300	4000	-	DUO*	17/568/33	937132

40	black	4800	3000	-	DUO*	17/568/33	937378
40	black	4400	4000	-	DUO*	17/568/33	937170
40	white	4600	3000	-	DUO*	17/568/33	937323
40	white	4800	4000	-	DUO*	17/568/33	937125

56	black	5400	3000	-	DUO*	17/568/33	937392
56	black	5700	4000	-	DUO*	17/568/33	937194
56	white	5900	3000	-	DUO*	17/568/33	937347
56	white	6300	4000	-	DUO*	17/568/33	937149

Accessories

Hide accessories

Index	Accessory name
937408	Terrano white connector
937415	Terrano black connector

Terrano white connector (937408)

Terrano black connector (937415)
