Tytan LED Pro is a fitting from the NEXT GEN line, which is a new generation of fittings in LED technology. The fitting, designed from scratch, allows new solutions to improve the light distribution and temperature balance. Branded LED diodes and new LED modules have an influence on a very high luminous efficacy: up to 178 lm/W. It guarantees the best-required lighting level and energy saving. The solution based on the integration of the diffuser and LED module is applied in the fitting. The fitting has a lot of facilities making the mounting easier and faster: the system of diffuser suspension, adjustable mounting brackets ensuring the mounting tolerance +/-50mm. Standard equipment of the fitting: clips made of stainless steel (INOX). Motion sensor mounting height: up to 5 meters.

Application

A the multifunctional LED lamp is designed for use in areas with high requirements for dust and water resistance. Especially recommended for lighting public facilities, including hospitals, educational facilities, halls, garages, passages, warehouses, shops, food industry, commercial and industrial facilities (factories, laboratories), warehouses, parking lots (underground and multi-level), sports stadiums, transport terminals, and underground passages. The luminaire is ideal for new lighting applications as well as replacing traditional fluorescent luminaires with energy-saving LED solutions. Its design is adapted for surface and suspended mounting.

Other products from the Tytan LED family

See our film Tytan 2 LED - IP66 industrial luminaires

The luminaire has a number of enhancements that make installation easier and faster:

Easy to replace LED module

For time savings and the convenience of installers and service personnel, diffuser suspension system integrated with the mounting panel has been used.

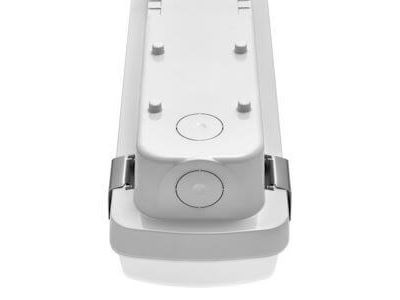

Mounting tolerance 100 mm

Adjustable brackets with a mounting tolerance of +/- 50 mm, facilitating and accelerating the process of surface mounting.

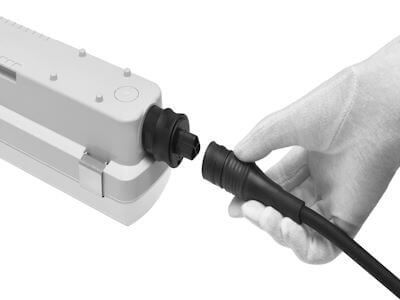

Quick connectors

Rapid-A or Rapid-D quick connectors make connecting power supply extremely quick and easy without the need to open the luminaire.

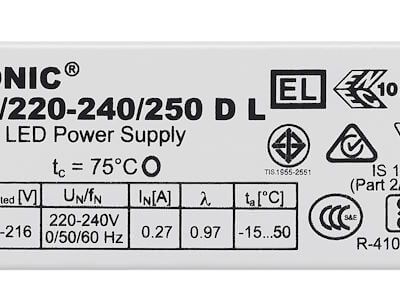

Branded components

Top-quality branded components ensure reliable operation and minimise maintenance costs.

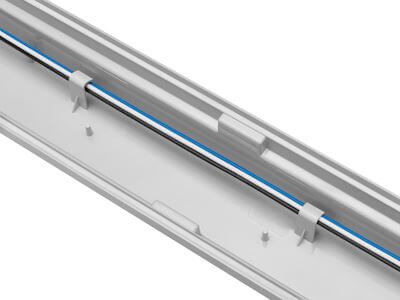

Guide rail brackets

Specially designed brackets enable leading the cables in an orderly manner.

Easy connection

The possibility of connecting the power supply from several sides makes assembly easier, even in hard-to-reach places.

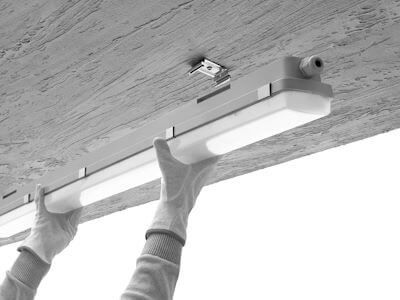

Convenient mounting

The use of suspended lighting module, quick connectors and a bracket with mounting tolerance helps save time during assembly and maintenance of the luminaires.

Ecological packaging

A new way of packaging luminaires. The difference is extremely significant. Buying a pallet of Tytan LED lamps in bulk packaging uses 20 kg less paper than if the same number of lamps were packed in individual boxes. This means a reduction in paper consumption of up to 74%. Less paper means a reduction in the CO2 emissions associated with its production.

Ecological luminaires

We offer luminaires that are both recycled and made from recycled materials at the end of their life cycle. An example of this is the Tytan LED lamp family. The base and diffuser of these products are made from 80-100 per cent recycled materials, and after many years of use (they last up to 196,000 operating hours) and disassembly, the materials are recycled again.

Options

Nominal power [W]	Colour temperature [K]	Luminous flux [lm]	Diffuser type	Motion sensor	DIMM DALI	Through wiring	Emergency lighting [h]	Dimensions (H/W/T/S) [mm]	Index
13W
13	4000	2500	MAT	-	-	-	3	1152/85/80	389061
13	4000	2500	MAT	-	-	LS2	-	1152/85/80	389023
13	4000	2500	MAT	yes	-	-	-	1152/85/80	389047
13	4000	2500	MAT	-	-	-	-	1152/85/80	389009
13	4000	2500	MAT	-	yes	-	-	1152/85/80	389283
24W
24	4000	4350	MAT	-	-	-	-	1152/85/80	389016
24	4000	4350	MAT	-	-	-	3	1152/85/80	389078
24	4000	4350	MAT	-	-	LS2	-	1152/85/80	389030
24	4000	4350	MAT	yes	-	-	-	1152/85/80	389054
24	4000	4350	MAT	-	yes	-	-	1152/85/80	389290
29W
29	4000	5450	MAT	-	-	-	-	1432/85/80	389160
29	4000	5450	MAT	-	-	-	3	1432/85/80	389191
29	4000	5450	MAT	-	-	LS2	-	1432/85/80	389177
29	4000	5450	MAT	yes	-	-	-	1432/85/80	389184
29	4000	5450	MAT	-	yes	-	-	1432/85/80	389320
33W
33	4000	6300	MAT	-	-	-	-	1432/85/80	389207
33	4000	6300	MAT	-	-	-	3	1432/85/80	389269
33	4000	6300	MAT	-	-	LS2	-	1432/85/80	389221
33	4000	6300	MAT	yes	-	-	-	1432/85/80	389245
33	4000	6300	MAT	-	yes	-	-	1432/85/80	389337
40W
40	4000	7500	MAT	-	-	-	3	1152/85/80	389146
40	4000	7500	MAT	-	-	LS2	-	1152/85/80	389108
40	4000	7500	MAT	yes	-	-	-	1152/85/80	389122
40	4000	7500	MAT	-	-	-	-	1152/85/80	389085
40	4000	7500	MAT	-	yes	-	-	1152/85/80	389306
47W
47	4000	8700	MAT	-	-	-	3	1152/85/80	389153
47	4000	8700	MAT	-	-	LS2	-	1152/85/80	389115
47	4000	8700	MAT	yes	-	-	-	1152/85/80	389139
47	4000	8700	MAT	-	-	-	-	1152/85/80	389092
47	4000	8700	MAT	-	yes	-	-	1152/85/80	389313
47	4000	8700	MAT	-	yes	-	-	1237/85/80	552663
59W
59	4000	10900	MAT	-	-	-	-	1432/85/80	389214
59	4000	10900	MAT	-	-	-	3	1432/85/80	389276
59	4000	10900	MAT	-	-	LS2	-	1432/85/80	389238
59	4000	10900	MAT	yes	-	-	-	1432/85/80	389252
59	4000	10900	MAT	-	yes	-	-	1432/85/80	389344
70W
70	4000	12000	MAT	-	-	-	-	1432/85/80	389351
70	4000	12000	MAT	-	-	-	3	1432/85/80	389382
70	4000	12000	MAT	-	-	LS2	-	1432/85/80	389368
70	4000	12000	MAT	yes	-	-	-	1432/85/80	389375
70	4000	12000	MAT	-	yes	-	-	1432/85/80	389399

Show more Show less

Accessories

Hide accessories

Index	Accessory name
358937	TYTAN MULTI LED 1150mm 2500-4300lm 840 - lighting module
358944	TYTAN MULTI LED 1150mm 5000-8700lm 840 - lighting module
358951	TYTAN MULTI LED 1450mm 3150-5450lm 840 - lighting module
907913	TYTAN LED. ATLAS LED - protective grid 1152mm
907920	TYTAN LED. ATLAS LED - protective grid 1432mm
60000006	M16 stuffing box plug various PA black M-16 - BPM-21
80000279	Gland. beam, Codar, soft polyvinyl chloride (PVC-P), gray
16000507	Breathable gland gray M20*1.5 IP68
908200	TYTAN LED. ATLAS LED. INDUSTRY LED - adjustable handle (set of 2)

TYTAN MULTI LED 1150mm 2500-4300lm 840 - lighting module (358937)

TYTAN MULTI LED 1150mm 5000-8700lm 840 - lighting module (358944)

TYTAN MULTI LED 1450mm 3150-5450lm 840 - lighting module (358951)

TYTAN LED. ATLAS LED - protective grid 1152mm (907913)

TYTAN LED. ATLAS LED - protective grid 1432mm (907920)

M16 stuffing box plug various PA black M-16 - BPM-21 (60000006)

Breathable gland gray M20*1.5 IP68 (16000507)

TYTAN LED. ATLAS LED. INDUSTRY LED - adjustable handle (set of 2) (908200)
