Specification

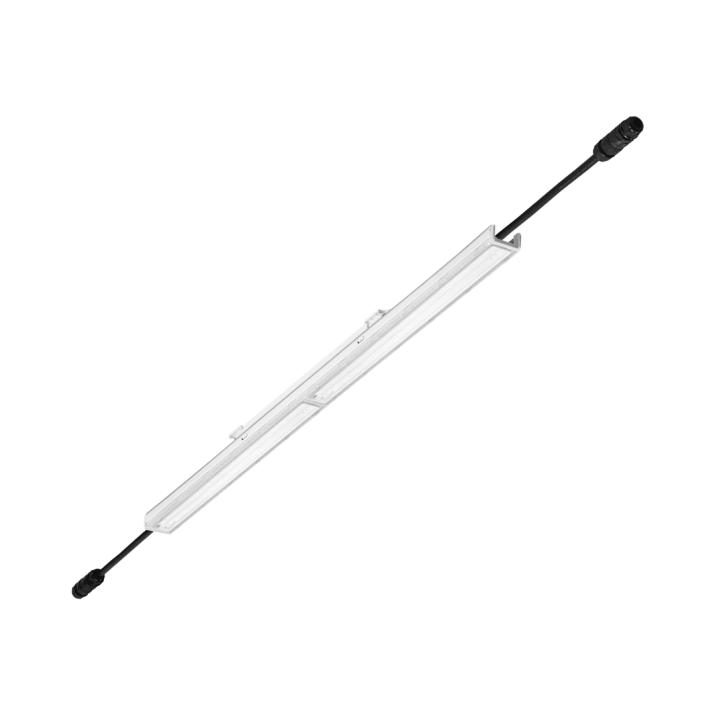

Tytan LED Pro is a fitting from the NEXT GEN line, which is a new generation of fittings in LED technology. The fitting, designed from scratch, allows new solutions to improve the light distribution and temperature balance. Branded LED diodes and new LED modules have an influence on a very high luminous efficacy: up to 178 lm/W. It guarantees the best-required lighting level and energy saving. The solution based on the integration of the diffuser and LED module is applied in the fitting. The fitting has a lot of facilities making the mounting easier and faster: the system of diffuser suspension, adjustable mounting brackets ensuring the mounting tolerance +/-40mm. Standard equipment of the fitting: clips made of stainless steel (INOX). Motion sensor mounting height: up to 5 meters.

Application

A the multifunctional LED lamp is designed for use in areas with high requirements for dust and water resistance. Especially recommended for lighting public facilities, including hospitals, educational facilities, halls, garages, passages, warehouses, shops, food industry, commercial and industrial facilities (factories, laboratories), warehouses, parking lots (underground and multi-level), sports stadiums, transport terminals, and underground passages. The luminaire is ideal for new lighting applications as well as replacing traditional fluorescent luminaires with energy-saving LED solutions. Its design is adapted for surface and suspended mounting.

Other products from the Tytan LED family

Options
Nominal power [W]
Colour temperature [K]
Luminous flux [lm]
Diffuser type
Motion sensor
DIMM DALI
Through wiring
Emergency lighting [h]
Dimensions [mm]
Index
13W
13 4000 2500 MAT - - LS2 - 1152/85/80 389023
13 4000 2500 MAT - - - 3 1152/85/80 389061
13 4000 2500 MAT yes - - - 1152/85/80 389047
13 4000 2500 MAT - - - - 1152/85/80 389009
13 4000 2500 MAT - yes - - 1152/85/80 389283
24W
24 4000 4350 MAT - - - - 1152/85/80 389016
24 4000 4350 MAT - - LS2 - 1152/85/80 389030
24 4000 4350 MAT - - - 3 1152/85/80 389078
24 4000 4350 MAT yes - - - 1152/85/80 389054
24 4000 4350 MAT - yes - - 1152/85/80 389290
29W
29 4000 5450 MAT - - - - 1432/85/80 389160
29 4000 5450 MAT - - LS2 - 1432/85/80 389177
29 4000 5450 MAT - - - 3 1432/85/80 389191
29 4000 5450 MAT yes - - - 1432/85/80 389184
29 4000 5450 MAT - yes - - 1432/85/80 389320
33W
33 4000 6300 MAT - - - - 1432/85/80 389207
33 4000 6300 MAT - - LS2 - 1432/85/80 389221
33 4000 6300 MAT - - - 3 1432/85/80 389269
33 4000 6300 MAT yes - - - 1432/85/80 389245
33 4000 6300 MAT - yes - - 1432/85/80 389337
40W
40 4000 7500 MAT - - - - 1152/85/80 389085
40 4000 7500 MAT - - LS2 - 1152/85/80 389108
40 4000 7500 MAT - - - 3 1152/85/80 389146
40 4000 7500 MAT yes - - - 1152/85/80 389122
40 4000 7500 MAT - yes - - 1152/85/80 389306
47W
47 4000 8700 MAT - - - - 1152/85/80 389092
47 4000 8700 MAT - - LS2 - 1152/85/80 389115
47 4000 8700 MAT - - - 3 1152/85/80 389153
47 4000 8700 MAT yes - - - 1152/85/80 389139
47 4000 8700 MAT - yes - - 1152/85/80 389313
59W
59 4000 10900 MAT - - - - 1432/85/80 389214
59 4000 10900 MAT - - LS2 - 1432/85/80 389238
59 4000 10900 MAT - - - 3 1432/85/80 389276
59 4000 10900 MAT yes - - - 1432/85/80 389252
59 4000 10900 MAT - yes - - 1432/85/80 389344
70W
70 4000 12000 MAT - - - - 1432/85/80 389351
70 4000 12000 MAT - - LS2 - 1432/85/80 389368
70 4000 12000 MAT - - - 3 1432/85/80 389382
70 4000 12000 MAT yes - - - 1432/85/80 389375
70 4000 12000 MAT - yes - - 1432/85/80 389399
NameIndex
TYTAN LED, ATLAS LED - protective grid 1152mm 907913
TYTAN LED, ATLAS LED - protective grid 1432mm 907920
Breathable gland gray M20*1.5 IP68 16000507
TYTAN MULTI LED 1150mm 2500-4350lm 840 - lighting module 358937
TYTAN MULTI LED 1150mm 5000-8700lm 840 - lighting module 358944
TYTAN MULTI LED 1450mm 3150-5450lm 840 - lighting module 358951
TYTAN MULTI LED 1450mm 6300-10900lm 840 - lighting module 358968
